Rio LX, Automatic
›
Repair and Diagnosis
›
Transmission
›
Automatic Trans
›
Automatic Transaxle System
›
Hydraulic Control System
›
Automatic Transaxle Hydraulic Circuit
›
Lock
Automatic Transaxle Hydraulic Circuit: Lock

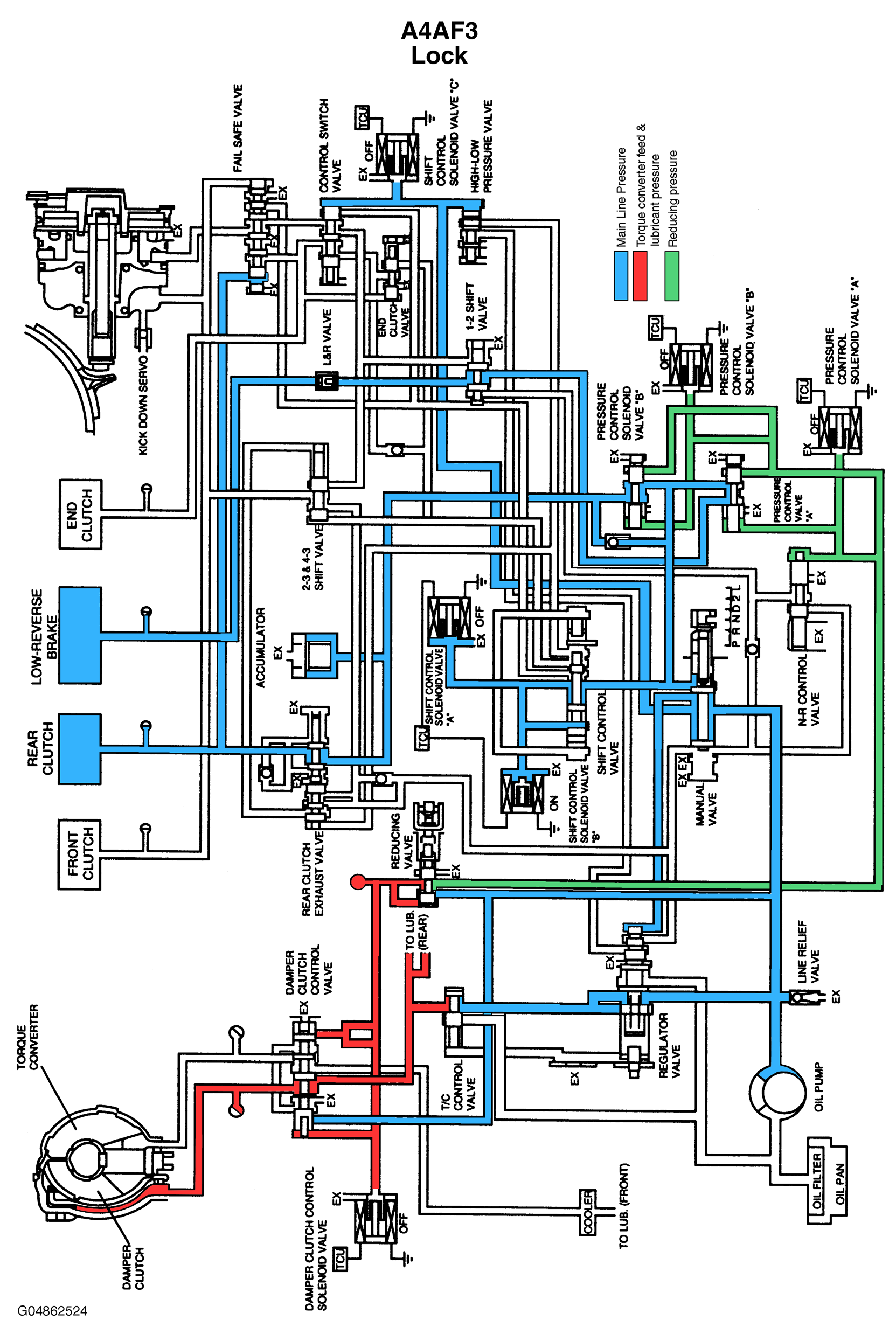

Fig 1: Automatic Transaxle Hydraulic Circuit Diagram - Lock
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
