Luggage Side Trim Replacement

NOTE:
  • Put on gloves to protect your hands.
  • When prying with a flat-tipped screwdriver, wrap it with protective tape to prevent damage.
  • Take care not to bend or scratch the trim and panels.
  1. Remove the rear door scuff trim. See REPLACEMENT .
  2. Remove the fire extinguisher.
  3. Remove the transverse trim.
  4. Remove the luggage side trim (A).
  5. Installation is the reverse of removal.

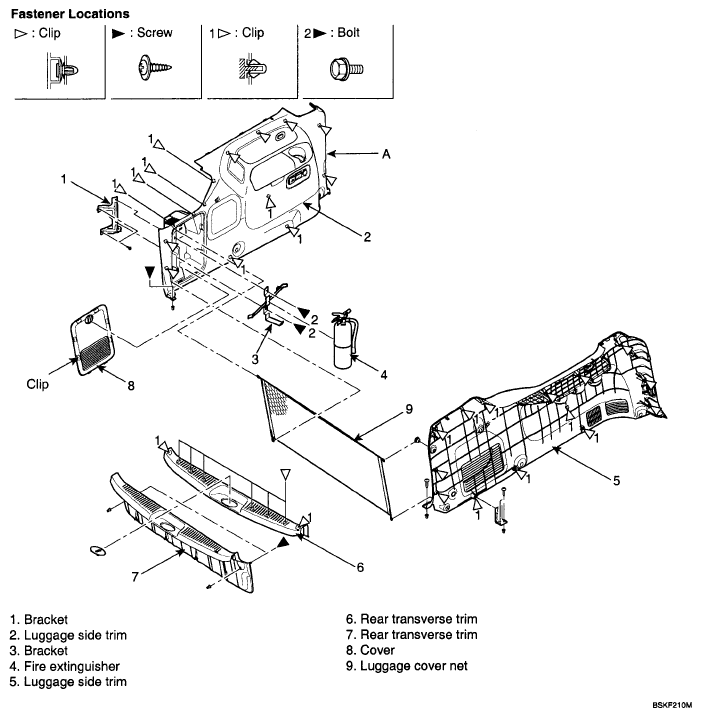

Fig 1: Identifying Luggage Side Trim Fastener Locations
G04884122Courtesy of KIA MOTORS AMERICA, INC.
