CVVT Oil Control Valve (OCV)
›
Description
›
Schematic Diagram
Schematic Diagram

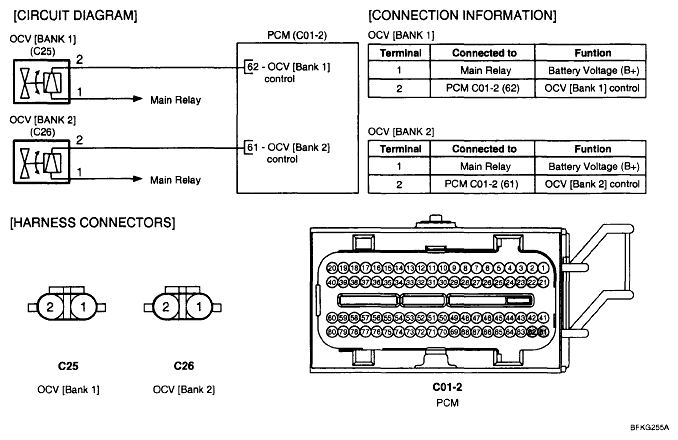

Fig 1: CVVT Oil Control Valve (OCV) Schematic Diagram
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
