Monitor Scan Tool Data

Ignition "OFF"
Connect scan tool and Engine "ON"
Monitor "ETS Motor" items on Current Data

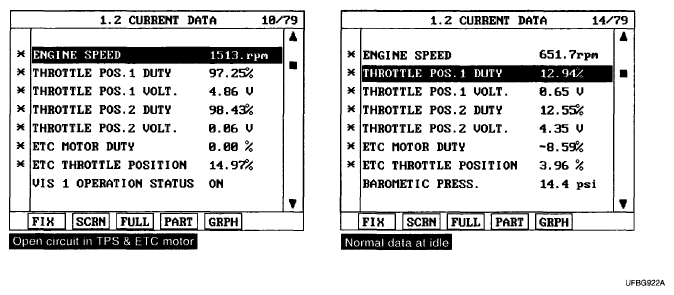

Fig 1: Scan Tool Display Screen - ETS Motor
Courtesy of KIA MOTORS AMERICA, INC.
Are those related current data displayed correctly?
YES
- Fault is intermittent caused by poor contact in Sensor' s and/or PCM' s connector or was repaired and PCM memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and go to "VERIFICATION OF VEHICLE REPAIR " procedure
NO
- Go to "TERMINAL AND CONNECTOR INSPECTION " procedure.
