Starting System: Starter: Components

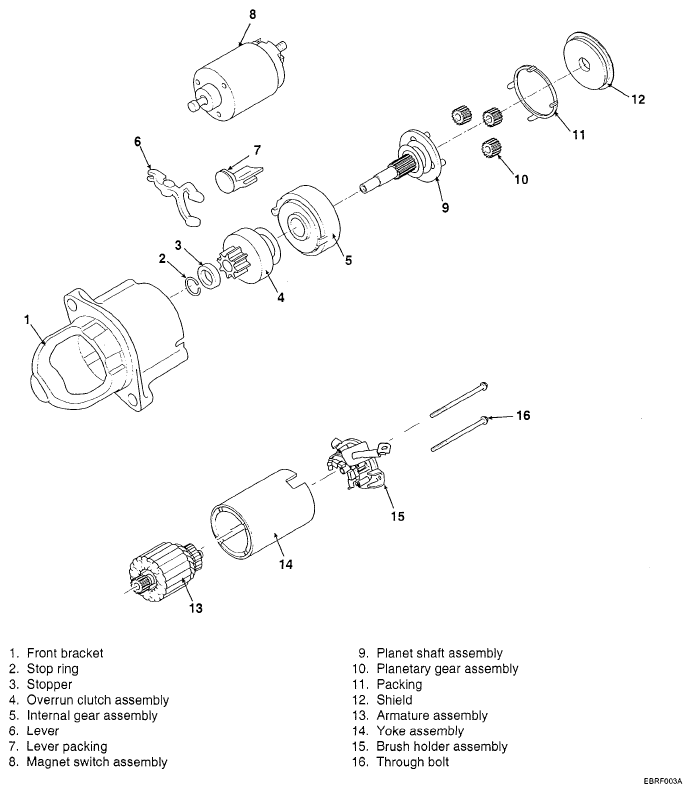

Fig 1: Identifying Starter Components
G05118219Courtesy of KIA MOTORS AMERICA, INC.
