Cooling System: Component

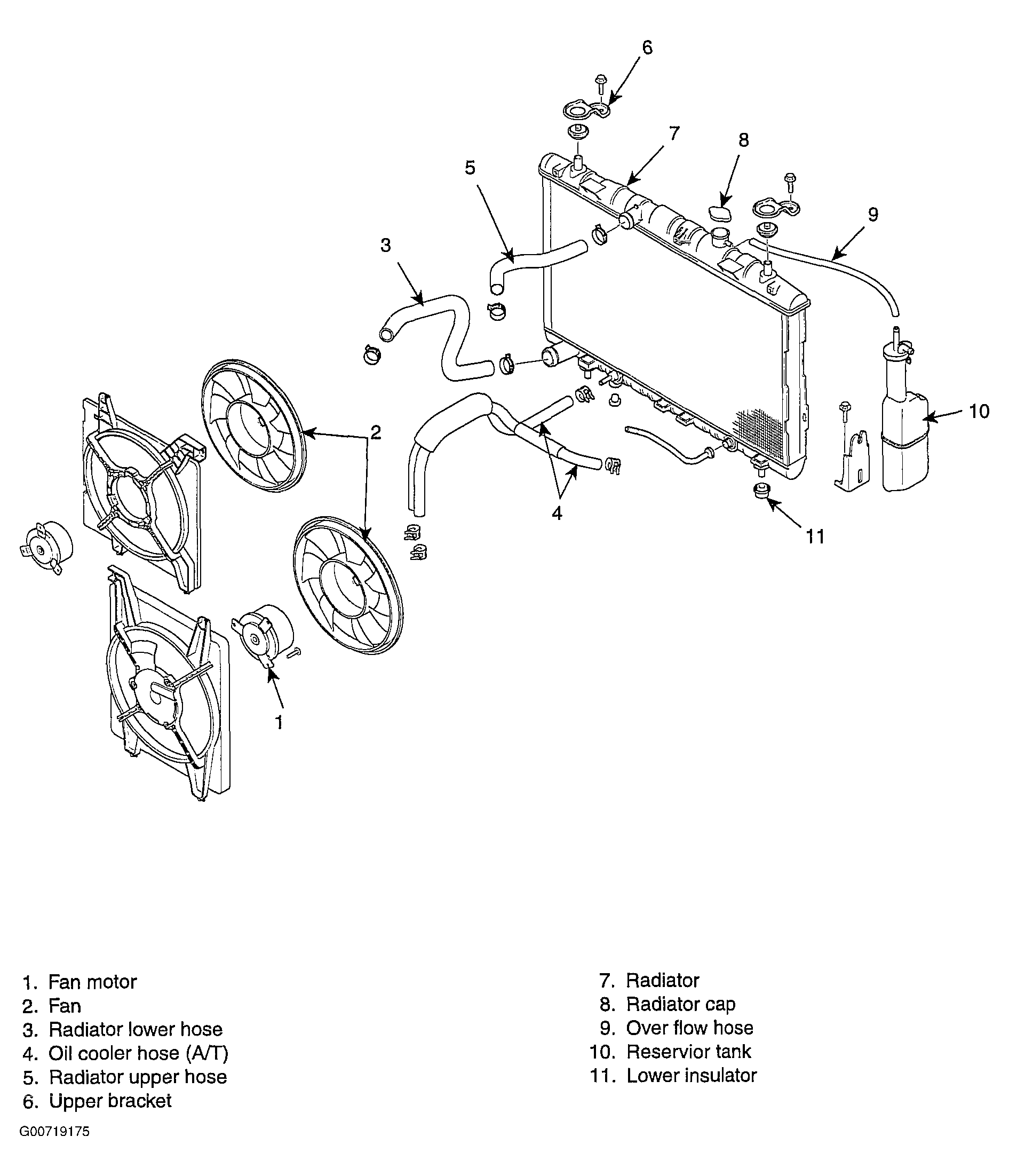

Fig 1: Identifying Cooling System Components (1 Of 2)
G00719175Courtesy of KIA MOTORS AMERICA, INC.

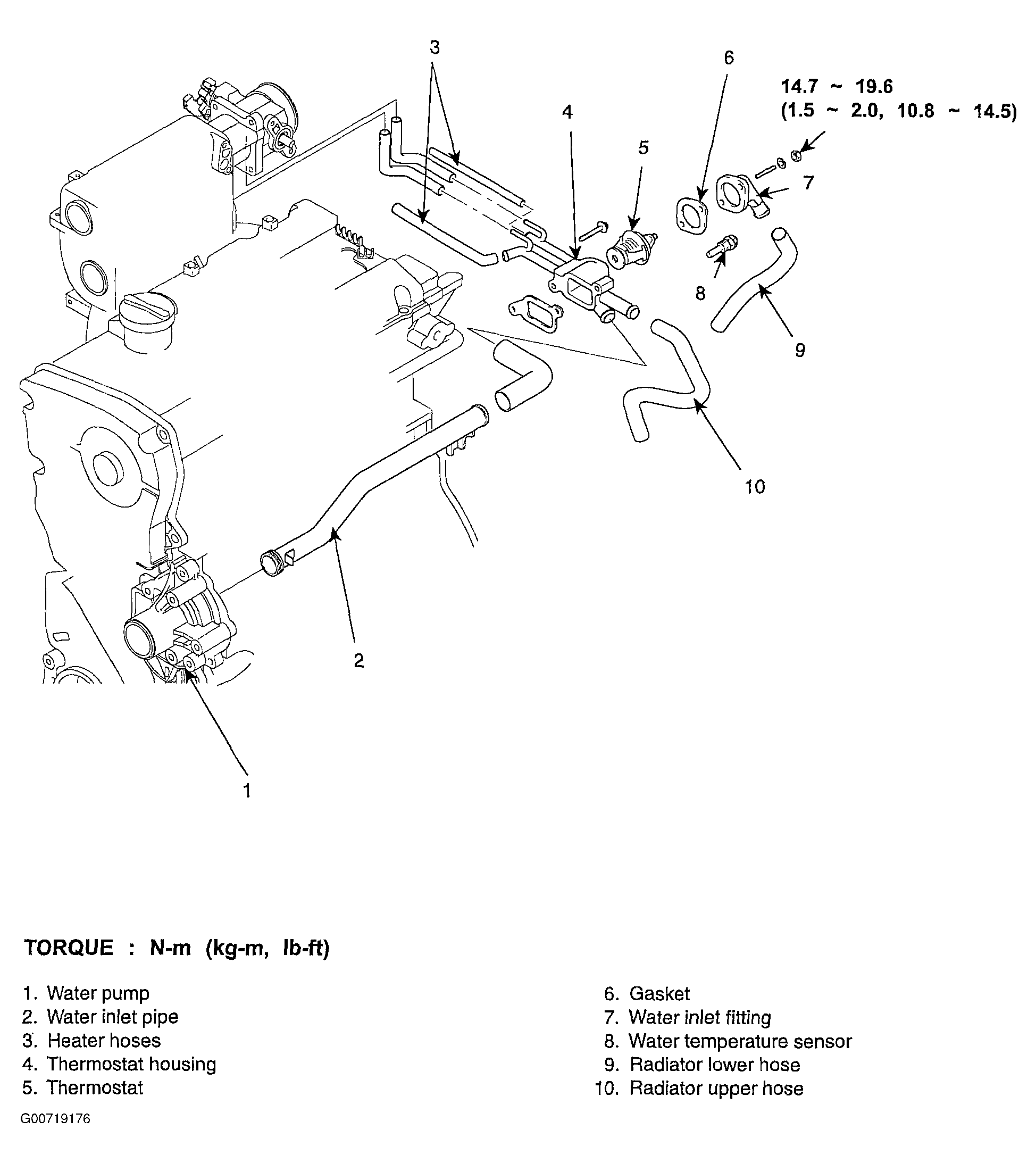

Fig 2: Cooling System Replacement Components With Torque Specifications (2 Of 2)
G00719176Courtesy of KIA MOTORS AMERICA, INC.
