Engine & Transaxle Assembly: Component

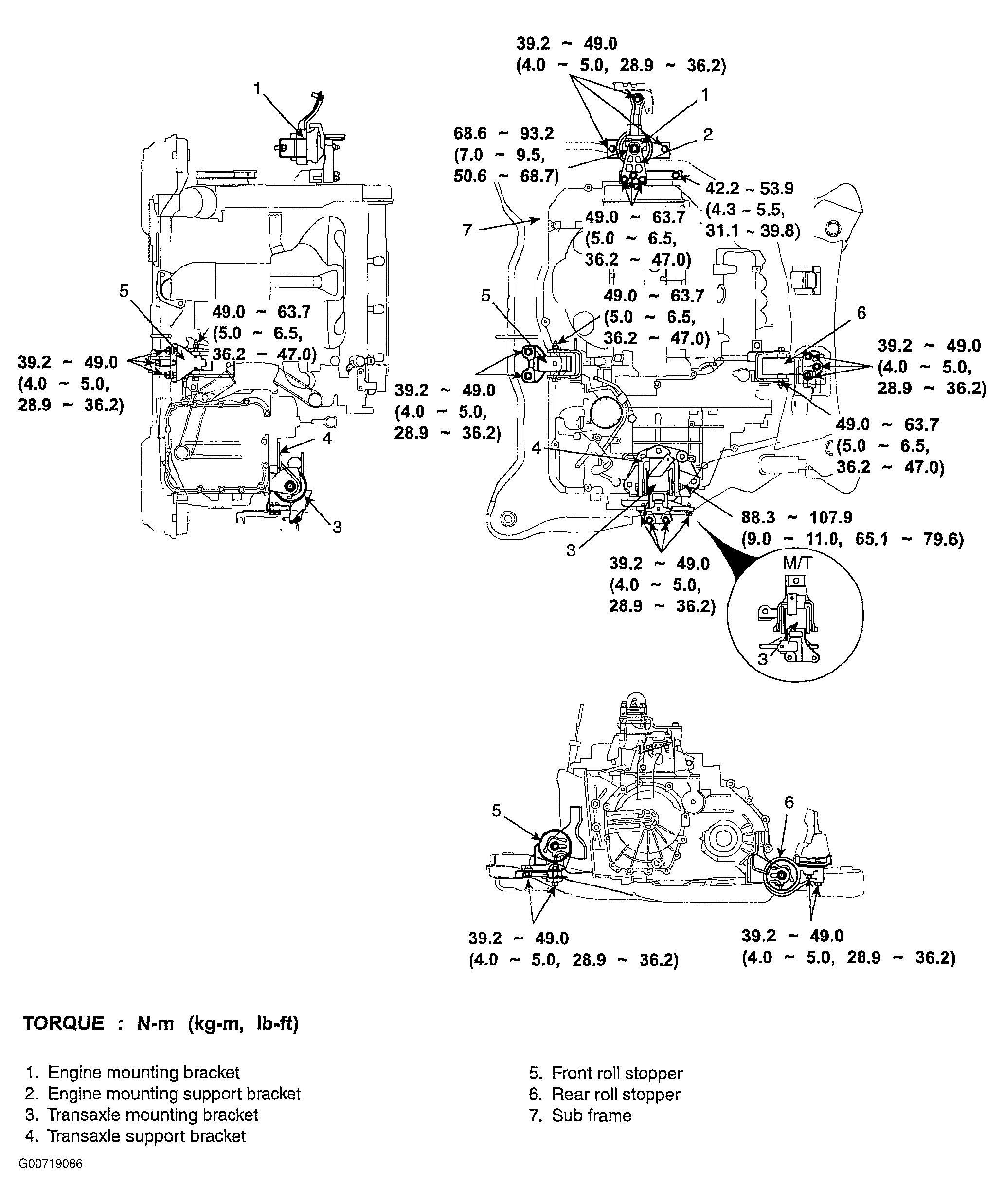

Fig 1: Engine & Transaxle Mounts With Torque Specifications
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
