Engine Overhaul: General: Troubleshooting

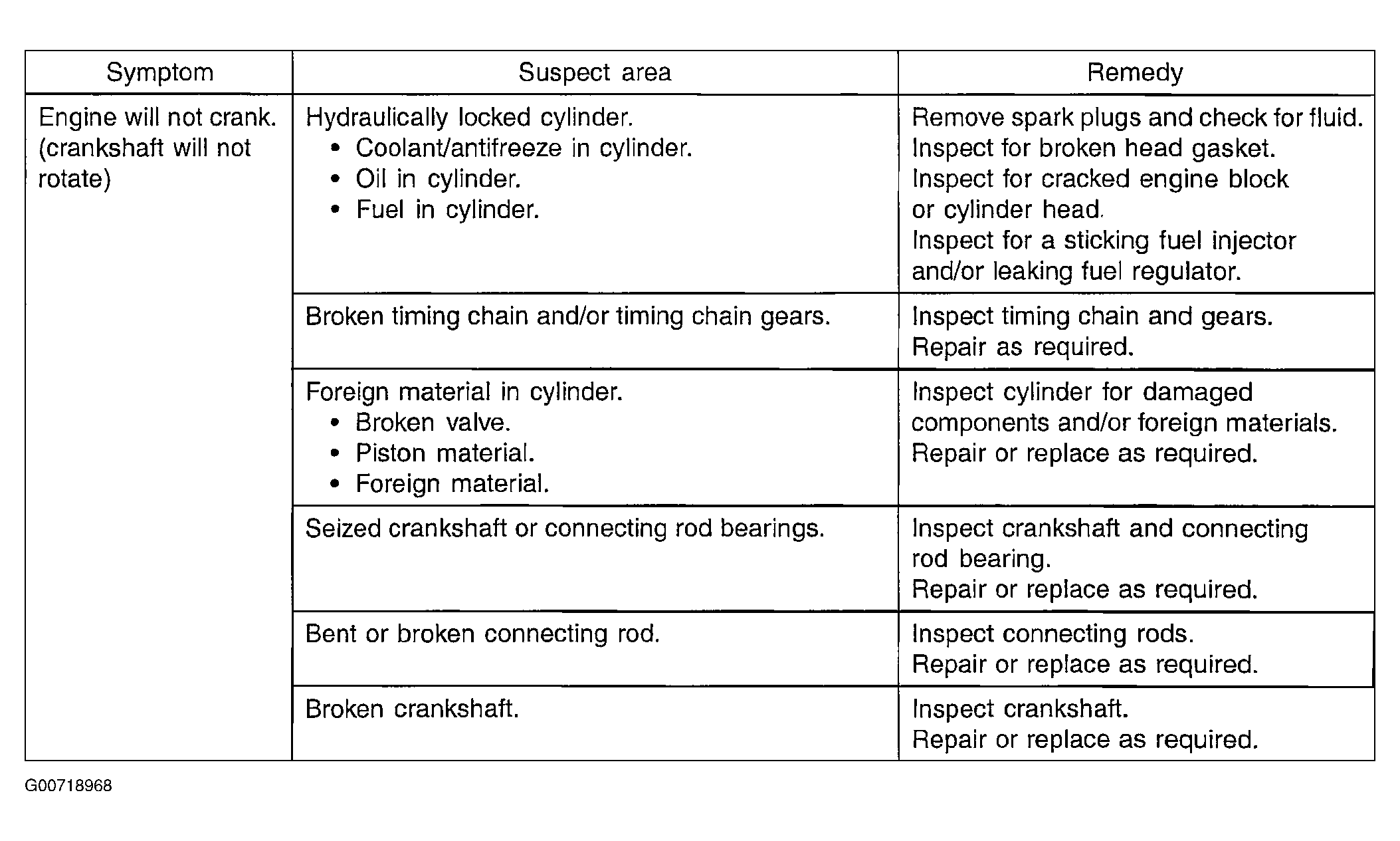

Fig 1: Troubleshooting Symptom Chart (1 Of 3)

Courtesy of KIA MOTORS AMERICA, INC.

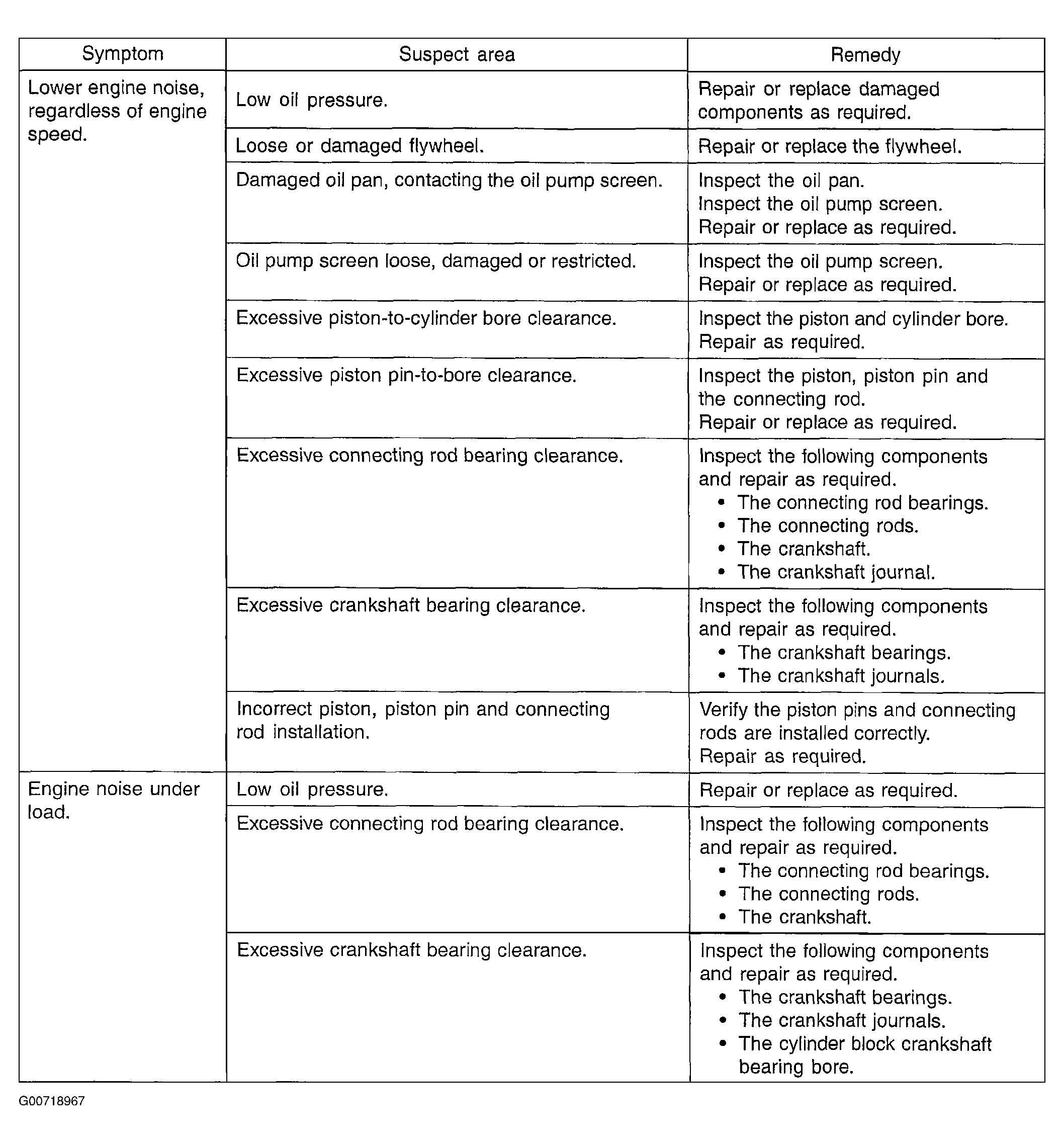

Fig 2: Troubleshooting Symptom Chart (2 Of 3)

Courtesy of KIA MOTORS AMERICA, INC.

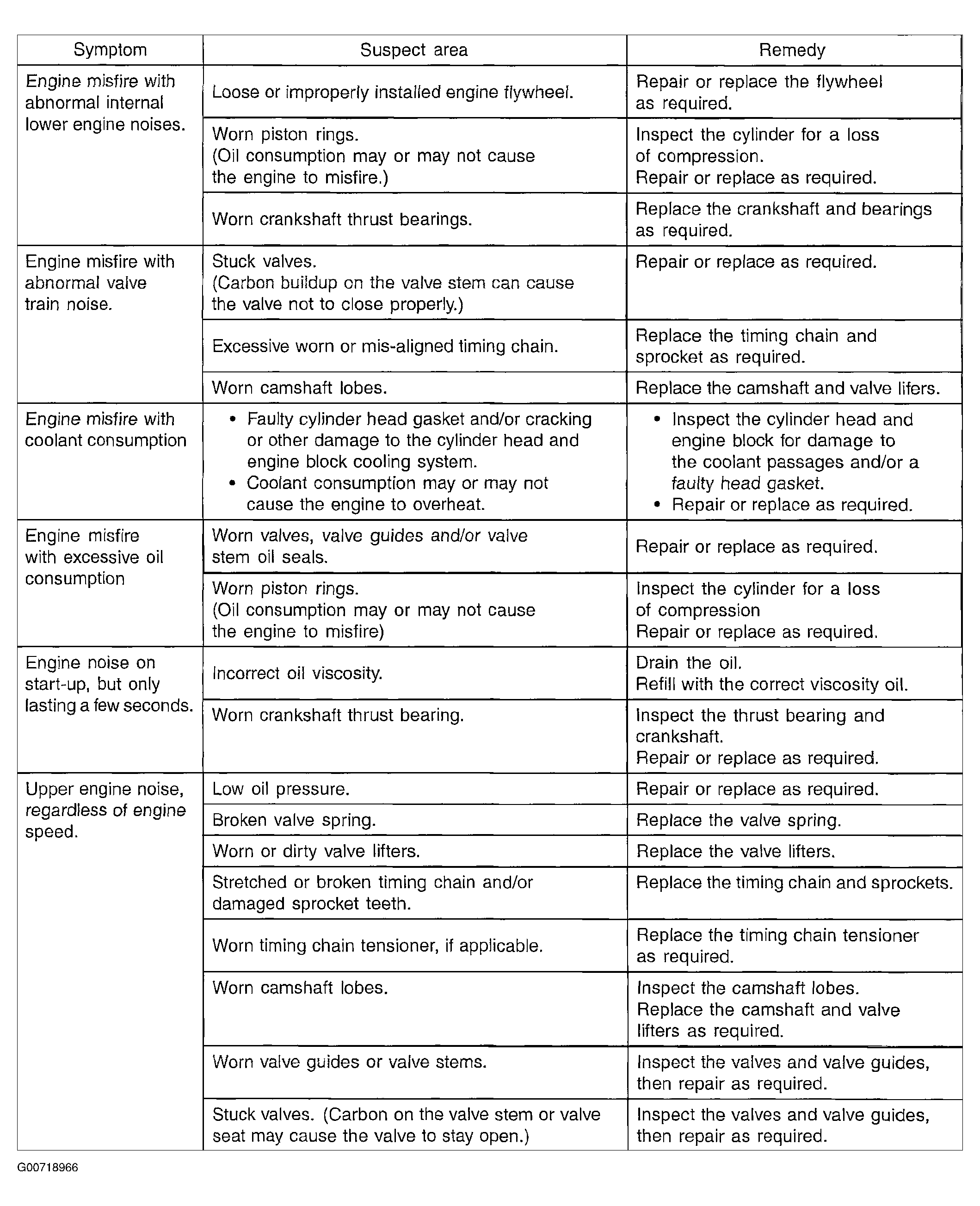

Fig 3: Troubleshooting Symptom Chart (3 Of 3)

Courtesy of KIA MOTORS AMERICA, INC.
