Components Location

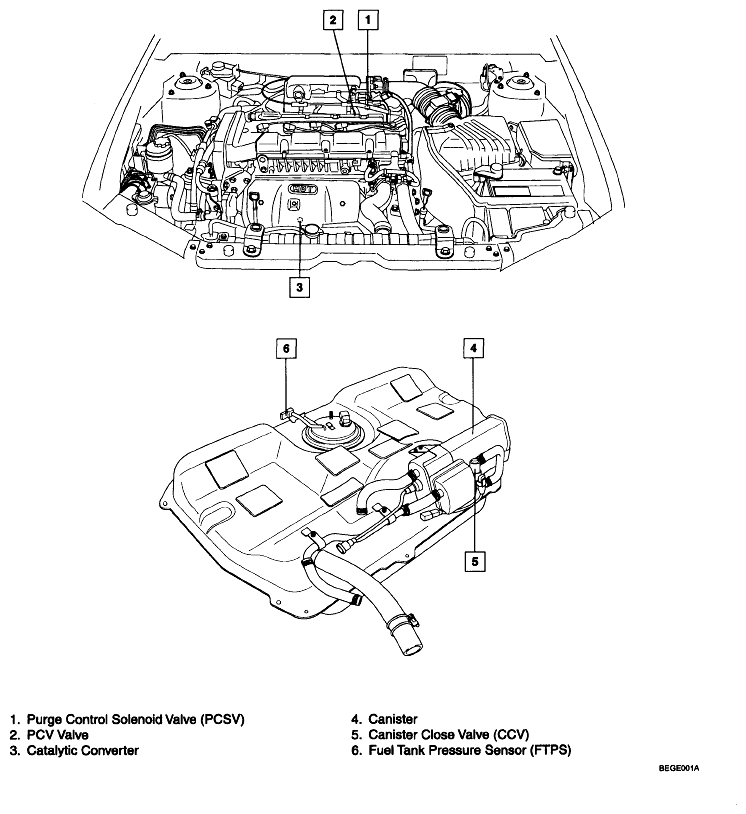

Fig 1: Identifying Emission Control System Components Location
G04864205Courtesy of KIA MOTORS AMERICA, INC.

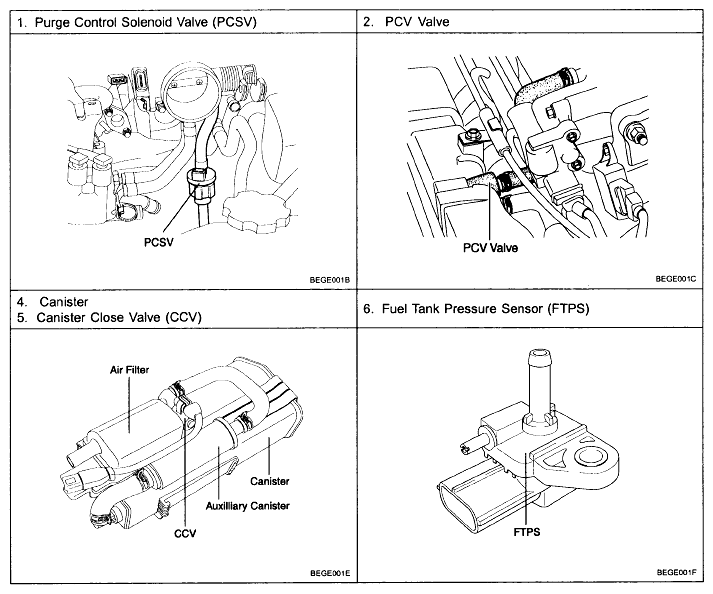

Fig 2: Identifying Emission Control System Components
G04864206Courtesy of KIA MOTORS AMERICA, INC.
