Cooling System: Removal: Radiator

Drain the engine coolant.
Remove the battery terminals (A) and heat shield (B).

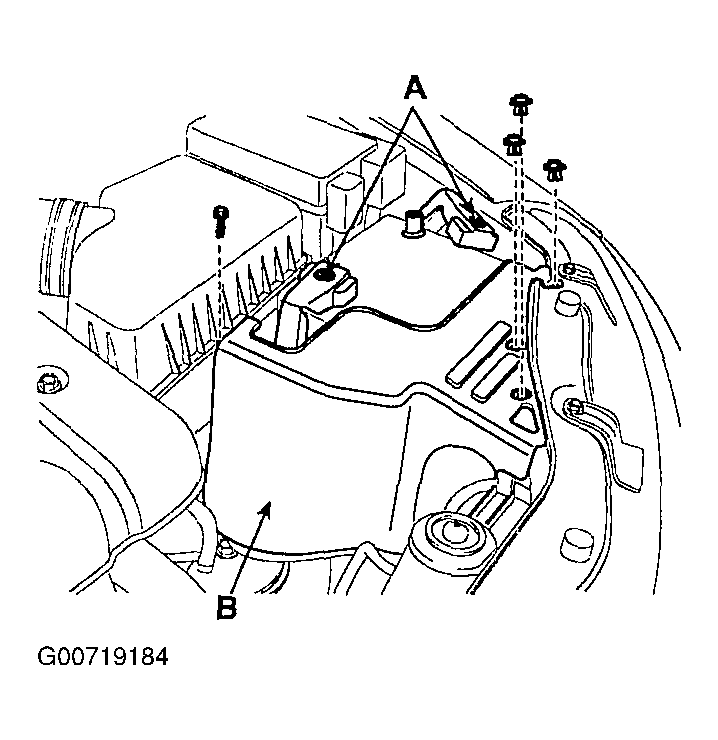

Fig 1: Removing Battery Terminals
Courtesy of KIA MOTORS AMERICA, INC.
Remove the battery and battery tray.

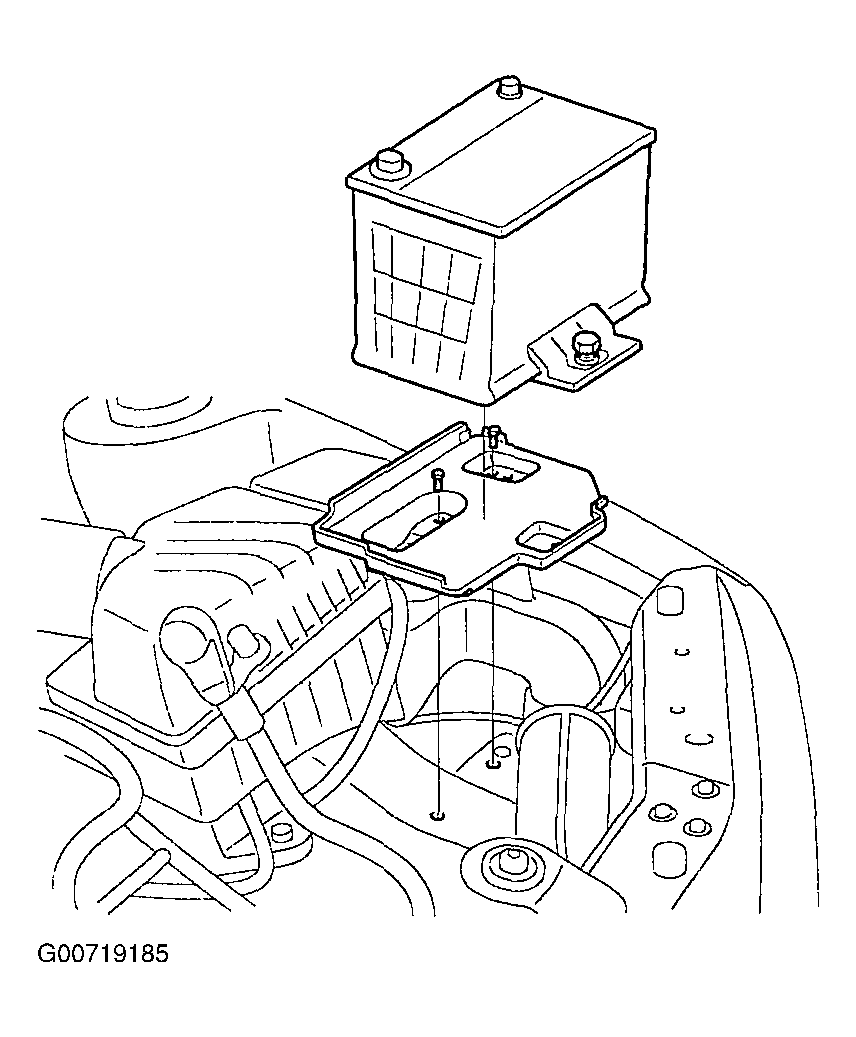

Fig 2: Removing Battery & Battery Tray
Courtesy of KIA MOTORS AMERICA, INC.

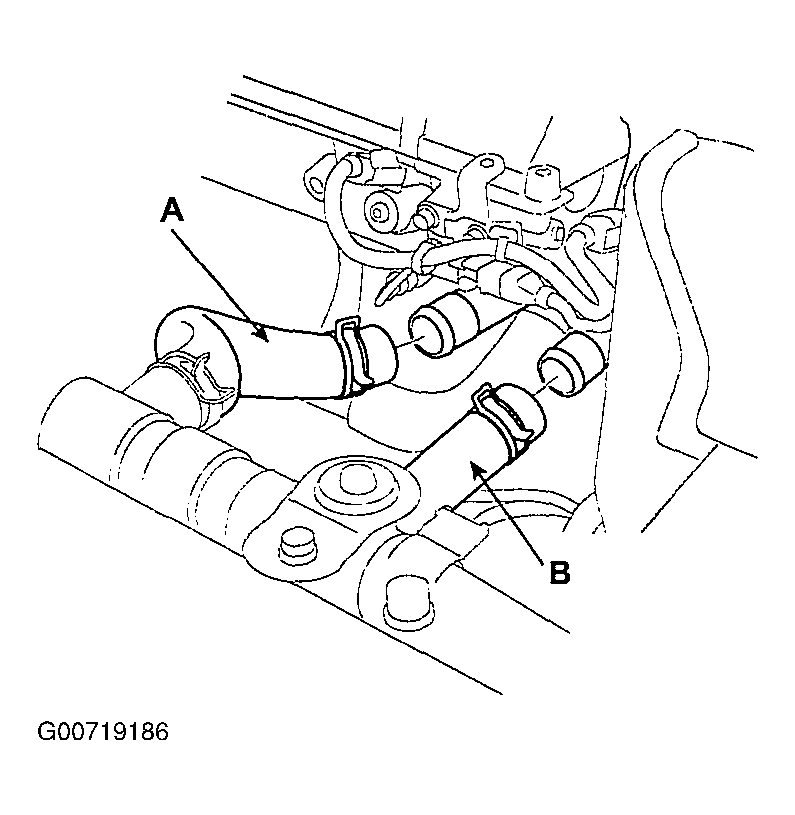

Remove the upper radiator hose (A) and lower radiator hose (B).

Fig 3: Removing Upper & Lower Radiator Hose
Courtesy of KIA MOTORS AMERICA, INC.
Remove the ATF (Automatic Transaxle Fluid) cooler hose (A).

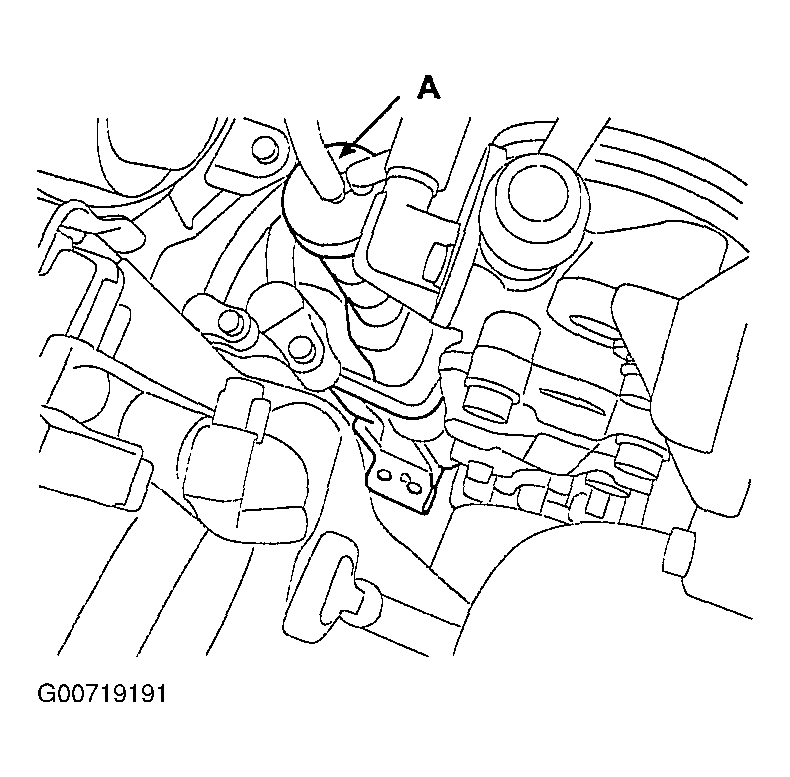

Fig 4: Removing Automatic Transaxle Fluid Cooler Hose
Courtesy of KIA MOTORS AMERICA, INC.
Disconnect the fan motor connector.

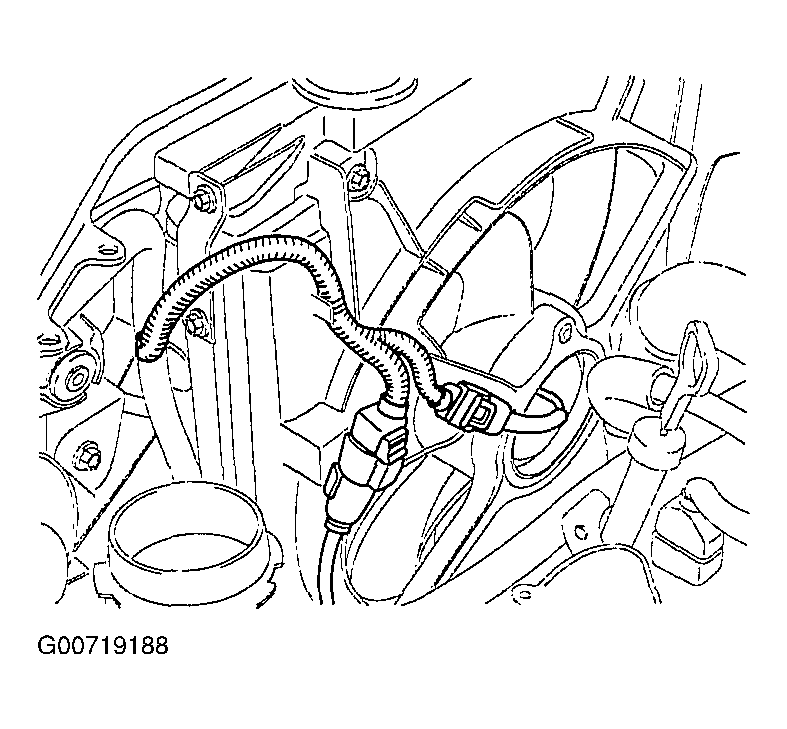

Fig 5: Disconnecting Fan Motor Connector
Courtesy of KIA MOTORS AMERICA, INC.
Remove the radiator.
1. Remove the air duct (A) to allow for radiator removal.

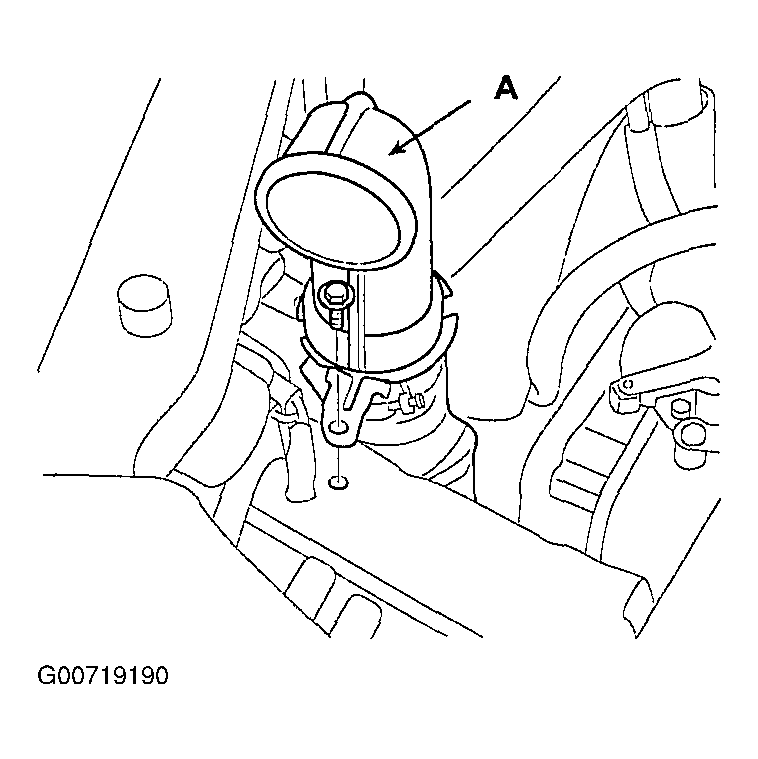

  Fig 6: Removing Air Duct
  Courtesy of KIA MOTORS AMERICA, INC.
2. Remove the reservoir tank (A) to allow clearance when removing the radiator.

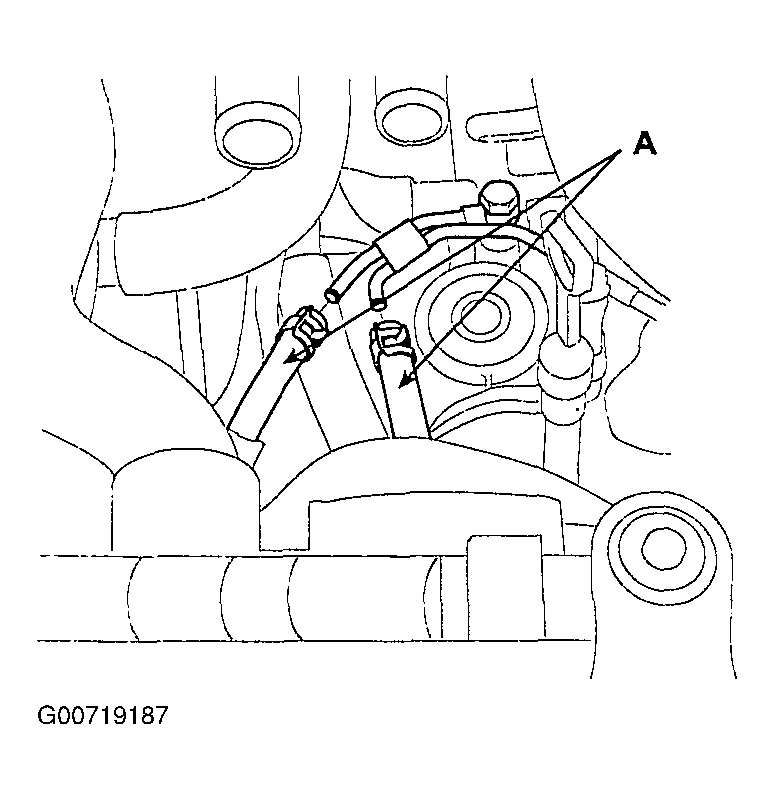

  Fig 7: Removing Reservoir Tank
  Courtesy of KIA MOTORS AMERICA, INC.
3. Remove the radiator mounting bolts and remove the radiator from condenser.

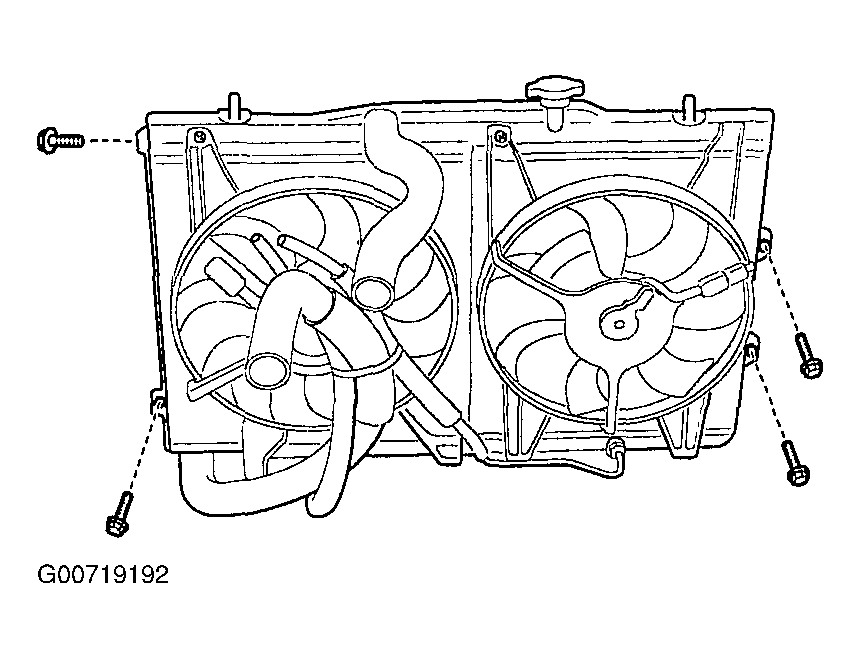

  Fig 8: Removing Radiator From Condenser
  Courtesy of KIA MOTORS AMERICA, INC.
Remove the radiator upper bracket, then pull up the radiator.

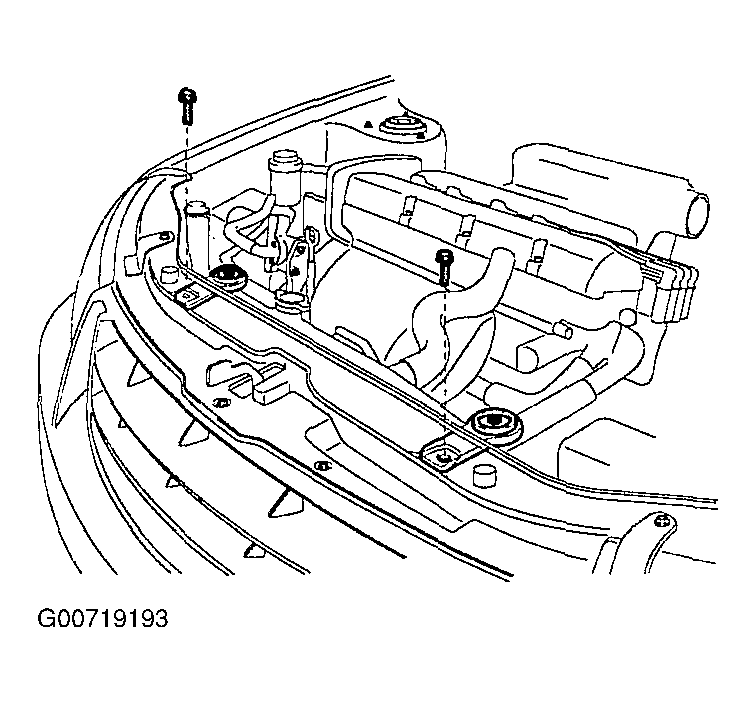

Fig 9: Removing Radiator Upper Bracket
Courtesy of KIA MOTORS AMERICA, INC.
Remove the cooling fan from the radiator.
