Kia
›
2008
›
Spectra5 2.0 1, Standard
›
Repair and Diagnosis
›
Engine Mechanical
›
Lubrication System
›
Engine Overhaul
›
General
›
Special Service Tools
Special Service Tools

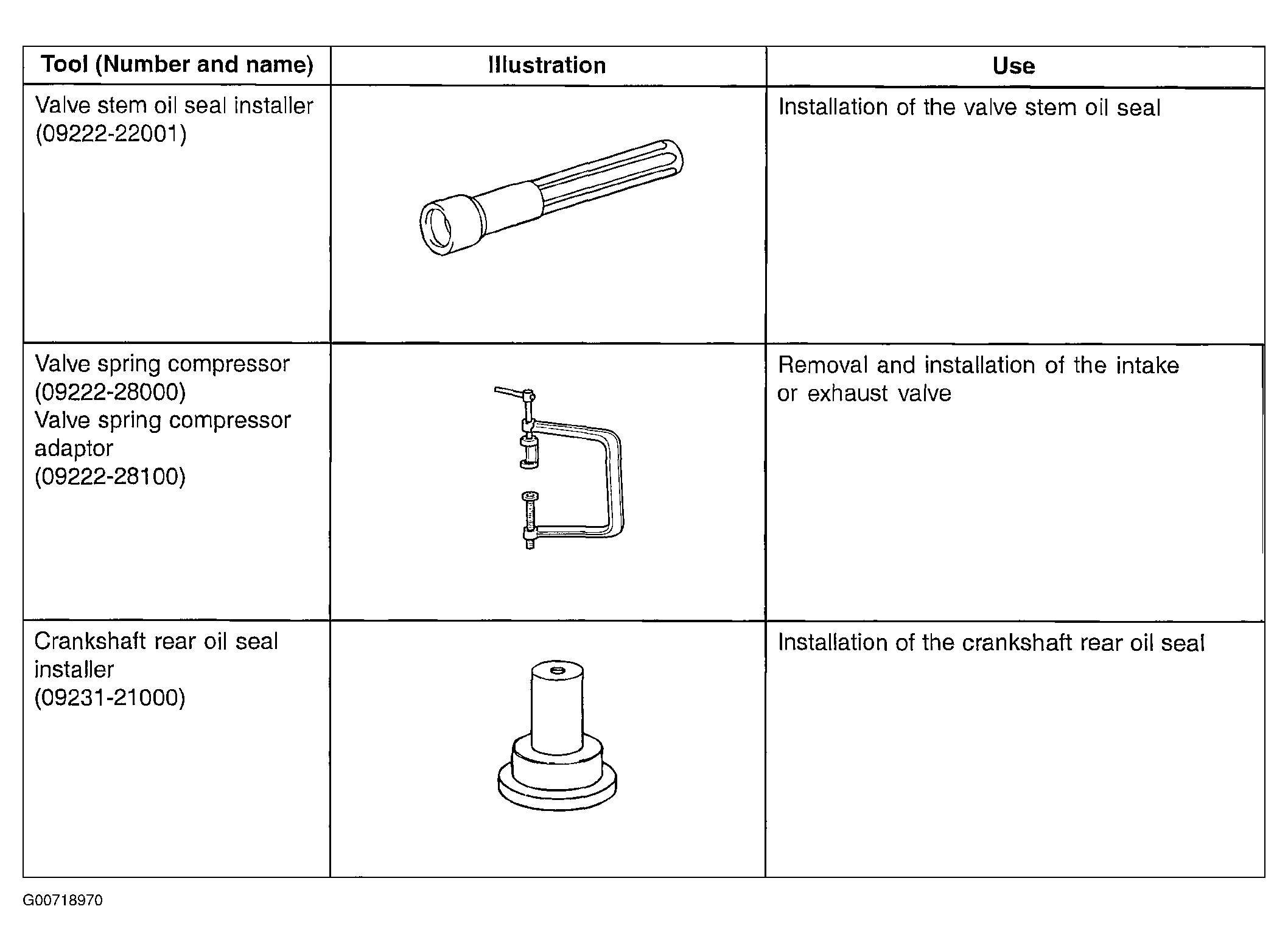

Fig 1: Identifying Service Tools (1 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.

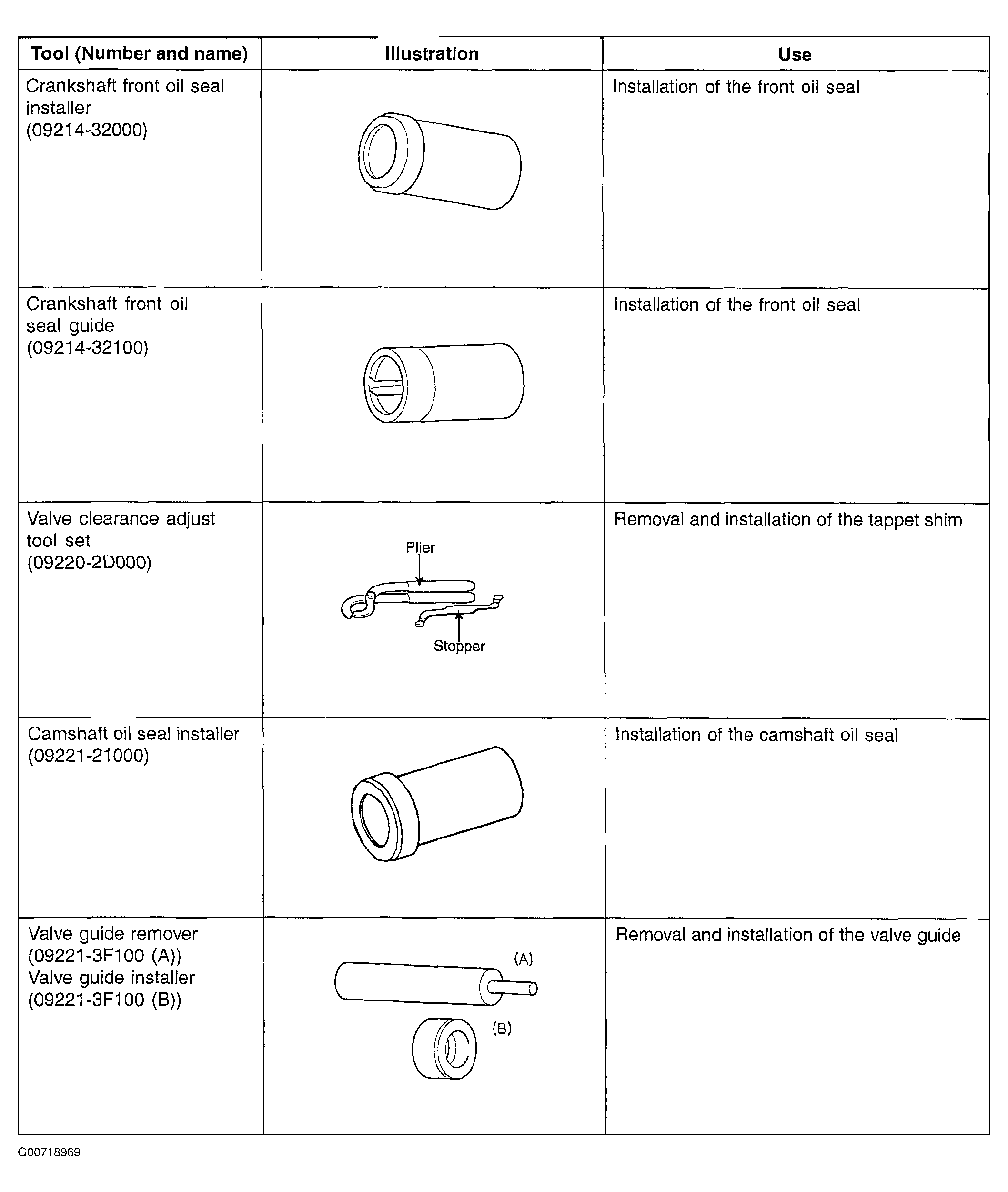

Fig 2: Identifying Service Tools (2 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
