Monitor Scan Tool Data

IGN "ON" AND Engine "OFF"
Monitor the "KEY STATUS" and "ECU STATUS' Parameter on the scan tool.
Specification : `LEARNT'

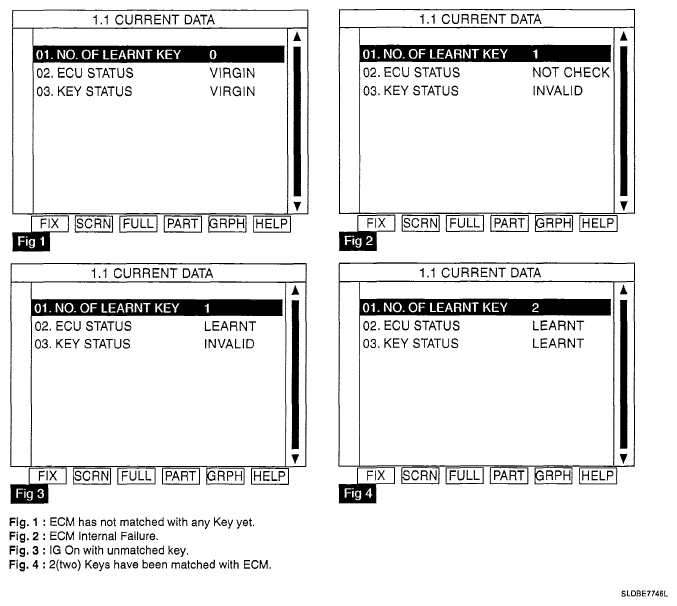

Fig 1: Scan Tool Screen Display - CURRENT DATA
Courtesy of KIA MOTORS AMERICA, INC.
Are "KEY STATUS" and "ECU STATUS' Parameter within specifications?
YES

Check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.

NO

Go to "COMPONENT INSPECTION " procedure.
