Timing Belt: Component

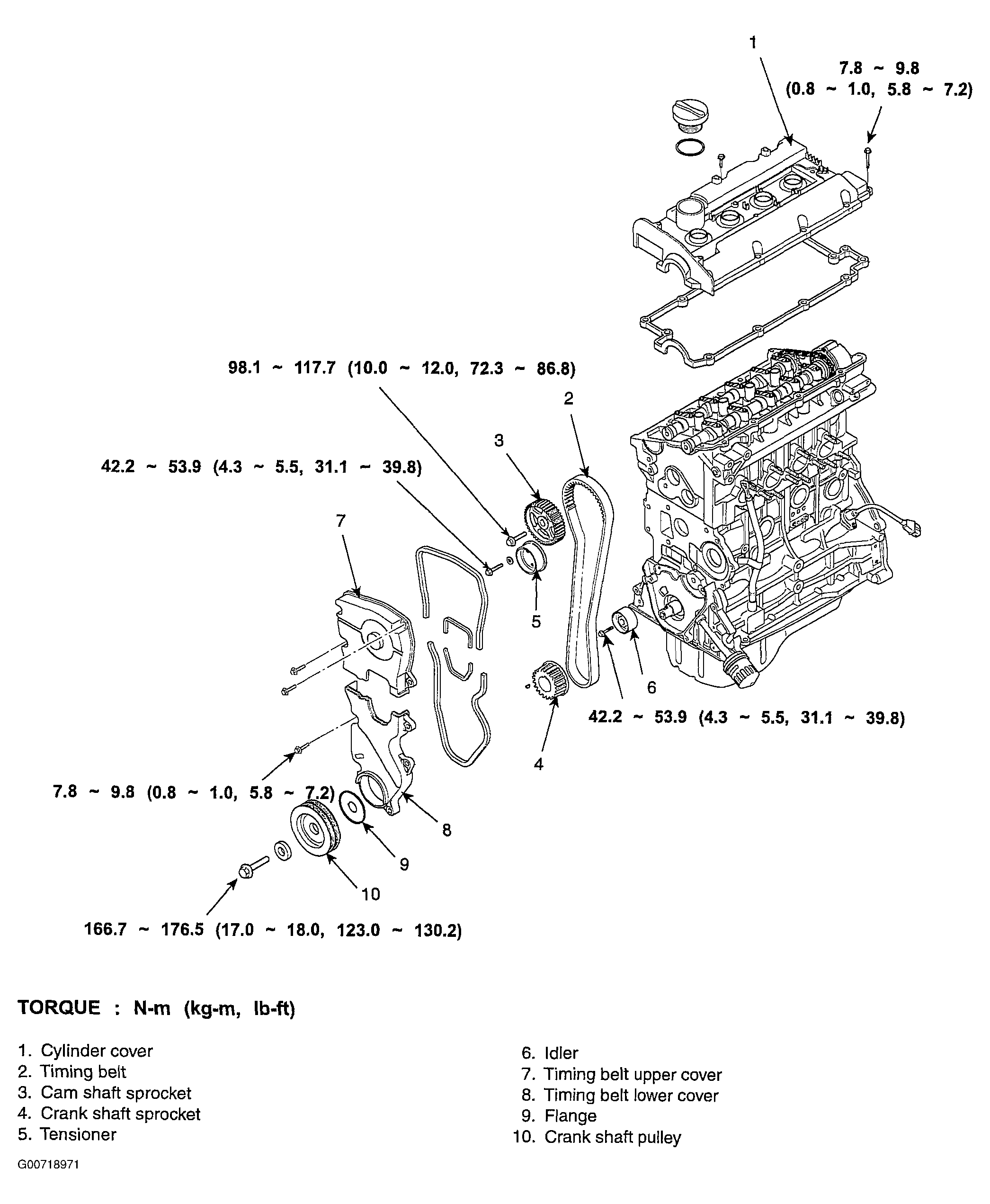

Fig 1: Exploded View Of Timing Belt Components With Torque Specifications
G00718971Courtesy of KIA MOTORS AMERICA, INC.
