Windshield Glass: Components

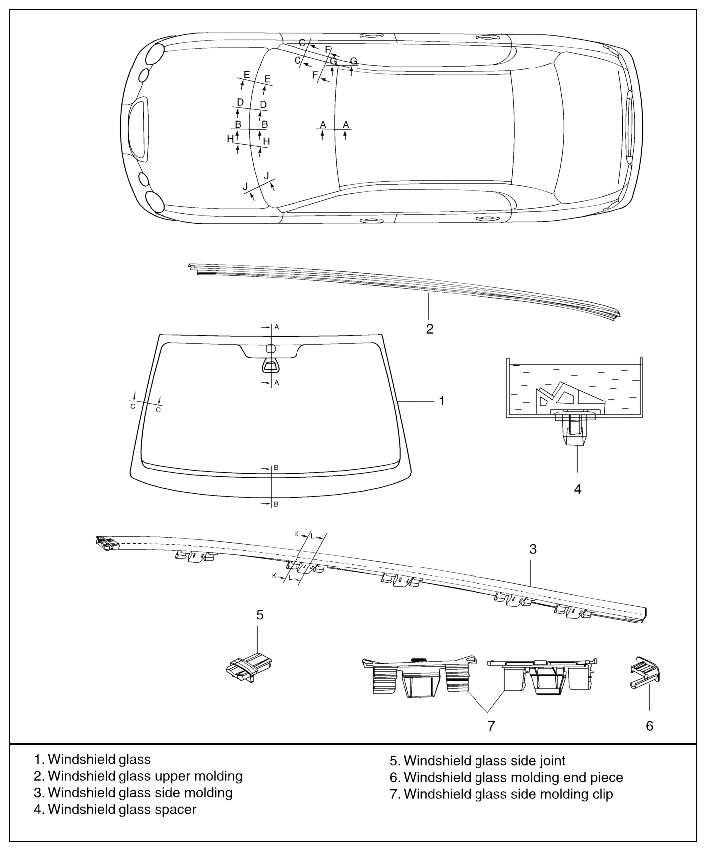

Fig 1: Identifying Windshield Glass Components (1 Of 2)

Courtesy of KIA MOTORS AMERICA, INC.

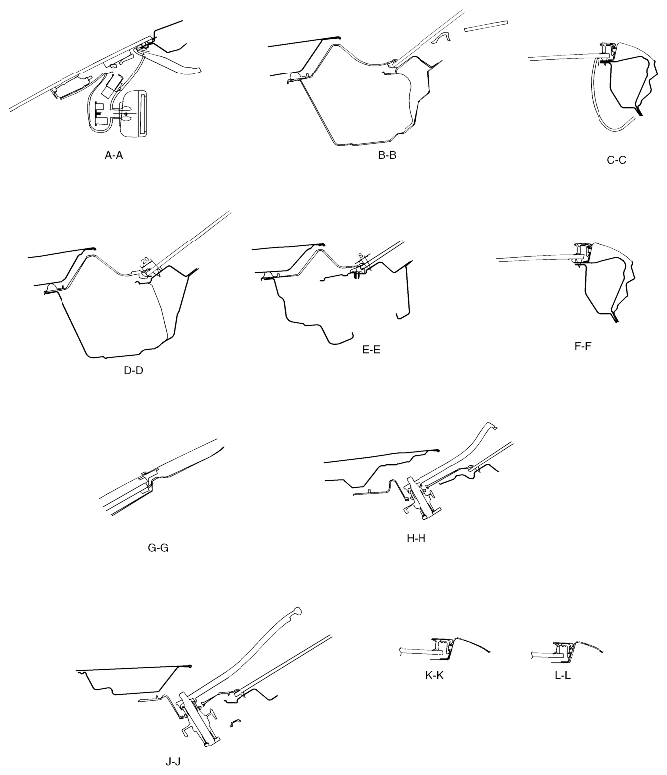

Fig 2: Identifying Windshield Glass Components (2 Of 2)

Courtesy of KIA MOTORS AMERICA, INC.
