Removal & Installation

1. Remove door inner cover fasteners (2).

Fig 1: Removing Door Frame Inner Cover

Courtesy of KIA MOTORS AMERICA, INC.

1. Remove outside rearview mirror screws (3).

   Tightening torque:

   7-11 N.m (0.7-1.1 kg.m, 5.1-8.0 lb. ft)

   Fig 2: Removing Outside Rearview Mirror

   Courtesy of KIA MOTORS AMERICA, INC.
2. Remove outside rearview mirror clip (1).
3. Disconnect mirror connector.

1. Remove cover and screw.

Fig 3: Removing Door Inner Handle Cover

Courtesy of KIA MOTORS AMERICA, INC.

1. Remove power window switch from door trim.
   Fig 4: Removing Power Window Switch

   Courtesy of KIA MOTORS AMERICA, INC.
2. Disconnect power window switch connectors (2).

1. Remove door trim screws (4).
   Fig 5: Removing Door Trim Screws

   Courtesy of KIA MOTORS AMERICA, INC.
2. Disconnect door trim connector.

1. Reconnect power window switch and safety window ECU connector.
2. Connect negative battery terminal.
3. Turn ignition switch "ON" and set window glass grip bolts on access hole.
   Fig 7: Remove Window Glass Bolts

   Courtesy of KIA MOTORS AMERICA, INC.
4. Turn ignition switch "OFF".
5. Disconnect negative battery terminal.
6. Disconnect power window switch and safety window ECU connector.
7. Remove window glass grip bolts (2).
   NOTE: Remove the glass carefully to avoid breakage.

   Tightening torque:

   8-12 N.m (0.8-1.2 kg.m, 5.8-8.7 lb. ft)

Fig 8: Removing Window Glass Grip Bolts

Courtesy of KIA MOTORS AMERICA, INC.

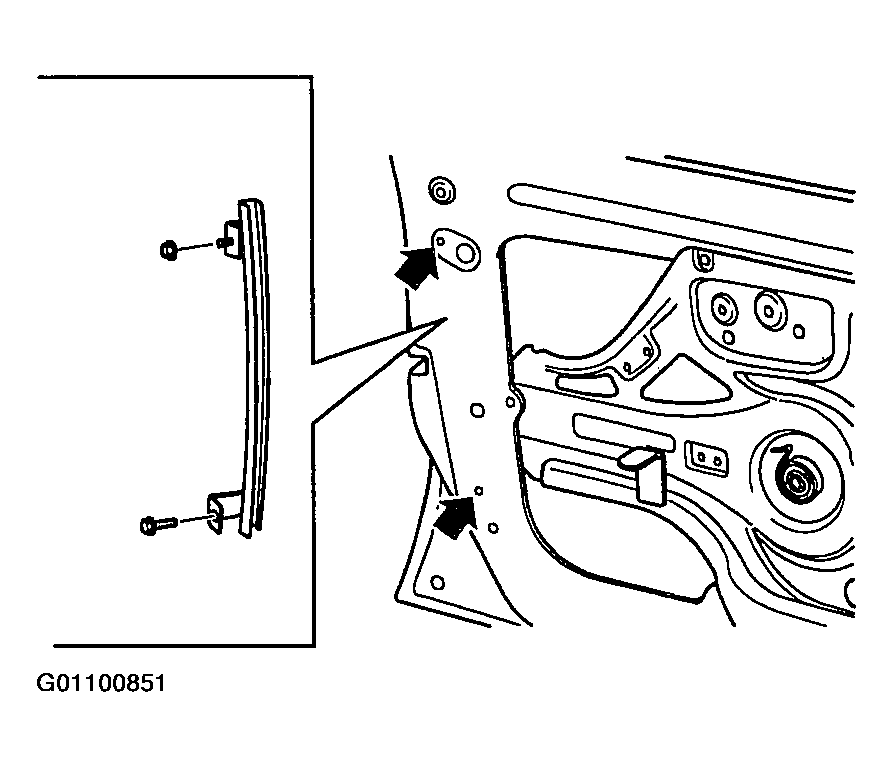

1. Remove glass run channel.
   NOTE: When install the glass run channel, use soap and water for lubrication.
2. Remove window glass guide bolt (1) and nut (1).

Tightening torque:

7-11 N.m (0.7-1.1 kg.m, 5.1-8.0 lb. ft)

Fig 9: Removing Glass Run Channel

Courtesy of KIA MOTORS AMERICA, INC.

1. Remove door speaker screws (4).
   Fig 10: Removing Door Speaker

   Courtesy of KIA MOTORS AMERICA, INC.
2. Disconnect door speaker connector.

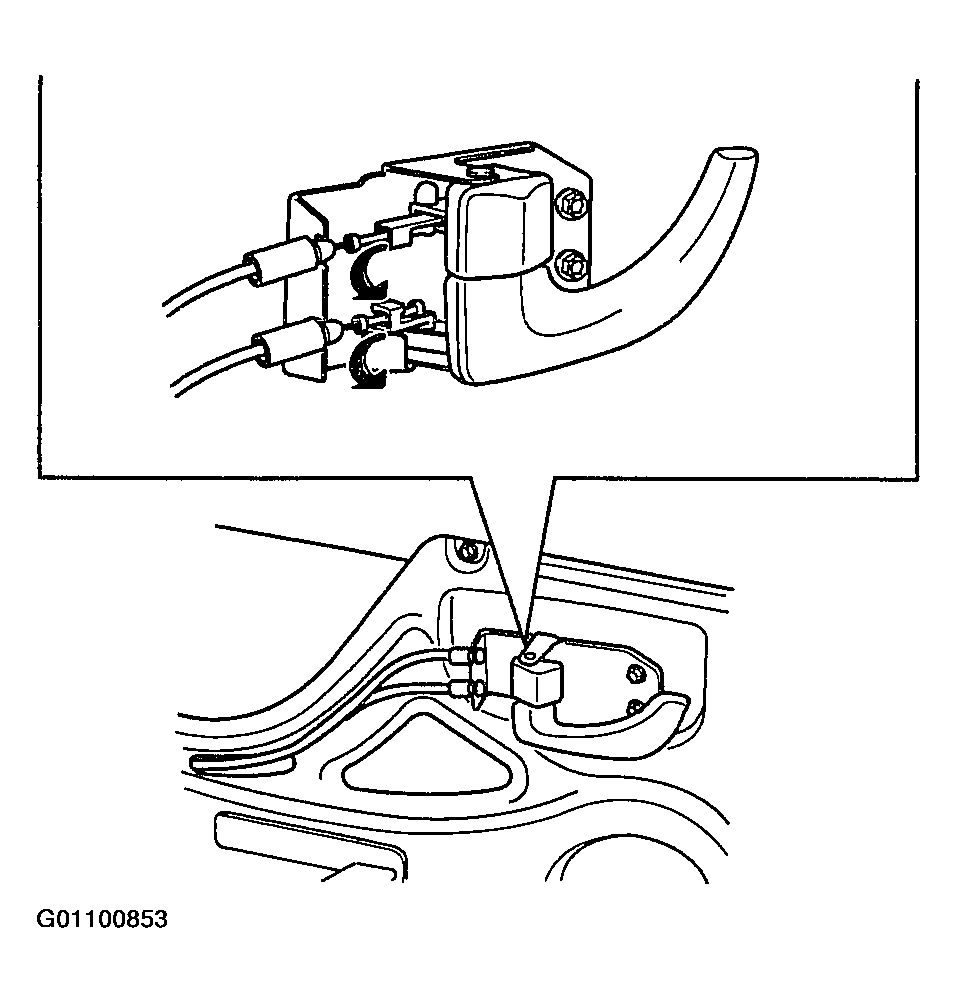

1. Disconnect inner handle cables (2).
   Fig 11: Disconnecting Inner Handle Cables

   Courtesy of KIA MOTORS AMERICA, INC.
2. Disconnect door module connector.
3. Remove wire harness from door module assembly.

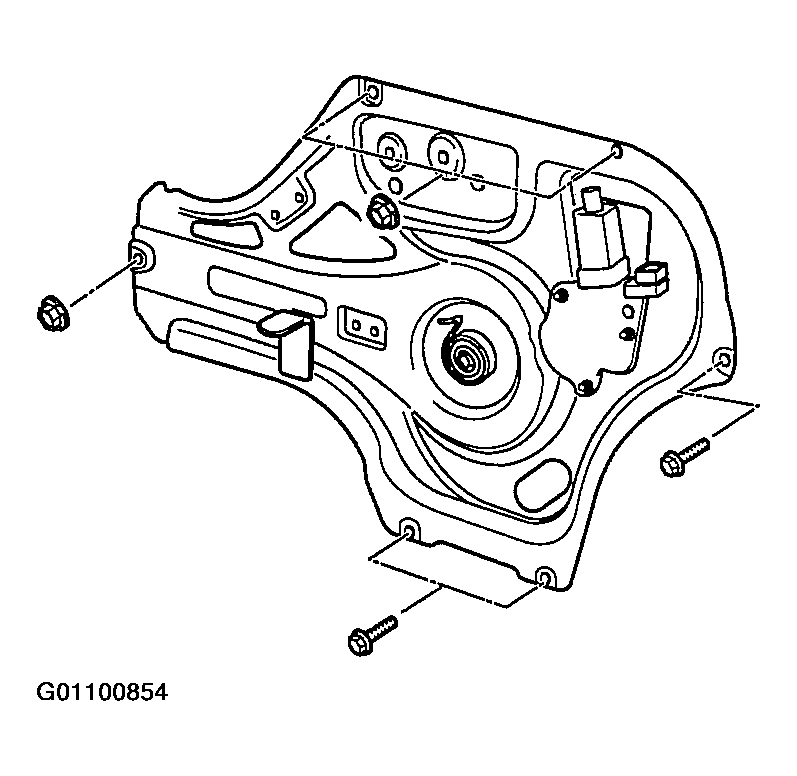

4. Remove door module bolts (3) and nuts (3).

   Tightening torque:

   7-11 N.m (0.7-1.1 kg.m, 5.1-8.0 lb. ft)

   Fig 12: Removing Door Module Bolts

   Courtesy of KIA MOTORS AMERICA, INC.

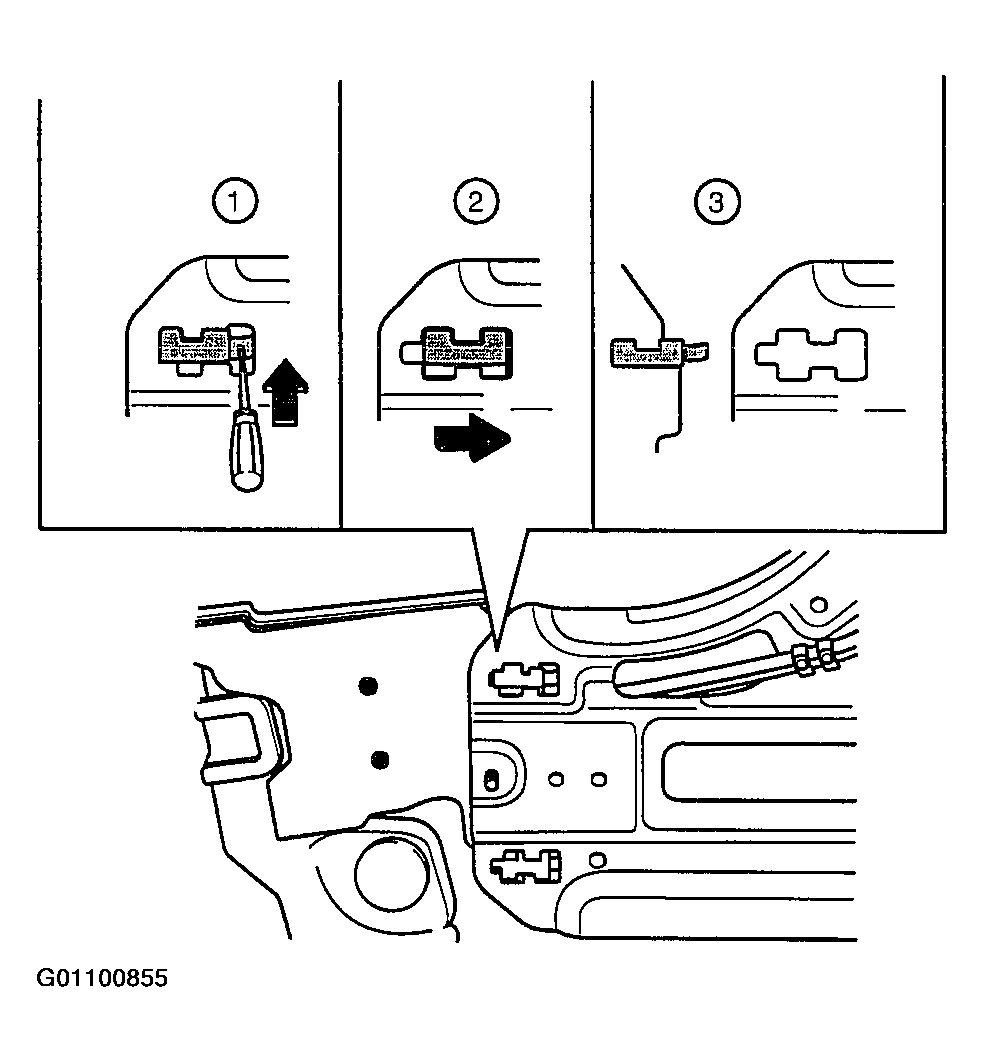

5. Separate door module from door latch assembly:
   1. Push the stopper with a screwdriver.
   2. Push the door module toward the door latch and remove it.
   Fig 13: Separating Door Module From Door Latch Assembly
   Courtesy of KIA MOTORS AMERICA, INC.
