Esp/ESC System
›
Components (2)
Components (2)

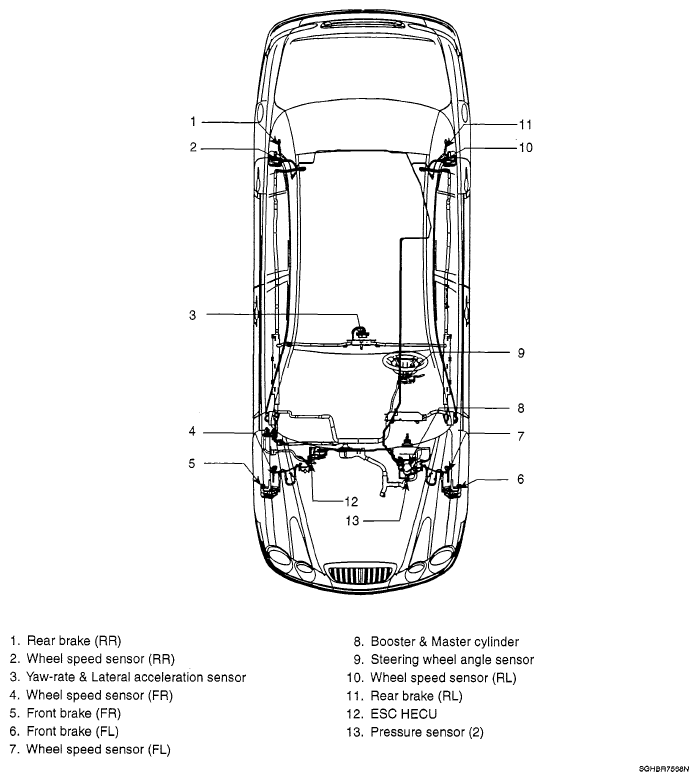

Fig 1: Identifying ESP/ESC Components Location (2 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
