Description Of ESC Control
›
Internal Block Diagram
Internal Block Diagram

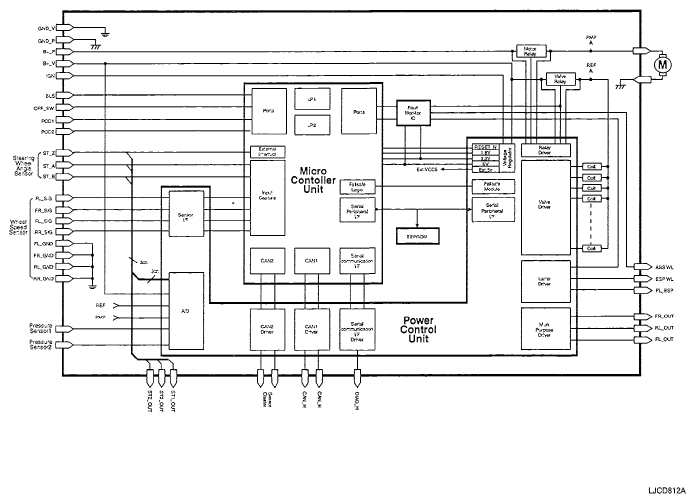

Fig 1: Internal Block Diagram
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
