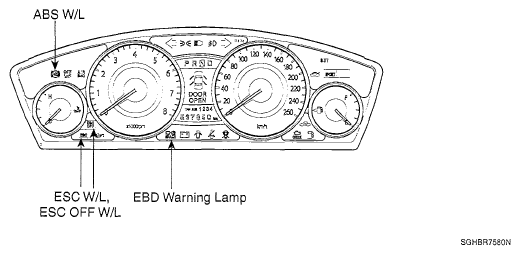

Warning Lamp & Function Lamp
- EBD warning lamp control
The EBD warning lamp indicates the operating condition of the EBD function.
The EBD warning lamp is on :
- During the initialization phase (3 seconds)
- In the event of inhibition of EBD functions.
- Depending on the warning lamp module, when the controller is switched off as long as voltage is applied at the ignition terminal (IG1).
- ABS warning lamp control
The ABS warning lamp indicates the operating condition of the ABS function.
The ABS warning lamp is on :
- During the initialization phase (3 seconds)
- In the event of inhibition of ABS functions
- Depending on the warning lamp module, when the controller is switched off as long as voltage is applied at the ignition terminal (IG1).
- During diagnostics.
- TCS/ESC warning lamp control
The TCS/ESC warning lamp indicates the operating condition of the TCS/ESC function.
The TCS/ESC warning lamp is on :
- During the initialization phase (3 seconds)
- In the event of inhibition of TCS/ESC functions
- During diagnostics.
- TCS/ESC function lamp control
The TCS/ESC function lamp indicates the operating condition of the TCS/ESC function.
The TCS/ESC function lamp is on :
- During the initialization phase (3 seconds)
The TCS/ESC function lamp is blinking :
- During TCS/ESC control
- At the ESC off mode depending on ESC off switch, ESC control is available and ESC function lamp is blinking only when brake is turned on by driver.
