Front Impact Sensor (FIS): Components

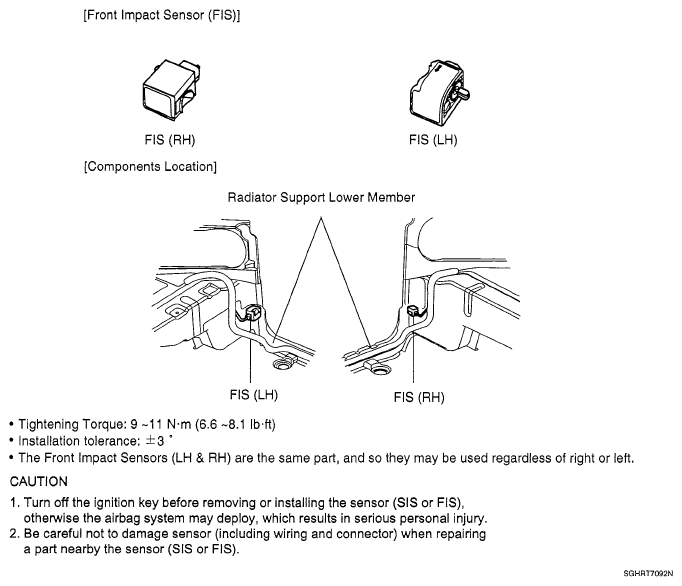

Fig 1: Identifying Front Impact Sensor Components
G05117205Courtesy of KIA MOTORS AMERICA, INC.
