Components (2)

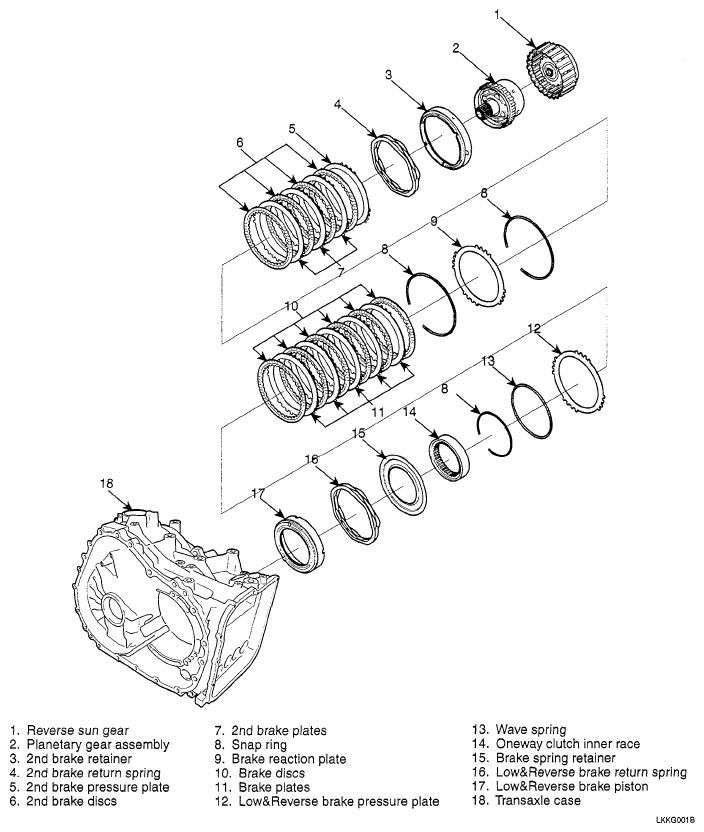

Fig 1: Identifying Automatic Transaxle Components (2 Of 2)
G05116765Courtesy of KIA MOTORS AMERICA, INC.
