Engine Control System - 4.6L
›
Intake Air Temperature Sensor (IATS)
›
Schematic Diagrams
›
Circuit Diagram
Circuit Diagram

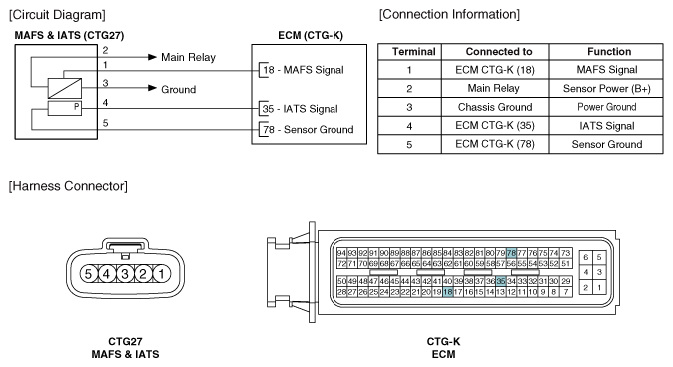

Fig 1: Mass Air Flow Sensor & Intake Air Temperature Sensor - Circuit Diagram
