Signal Waveform & Data

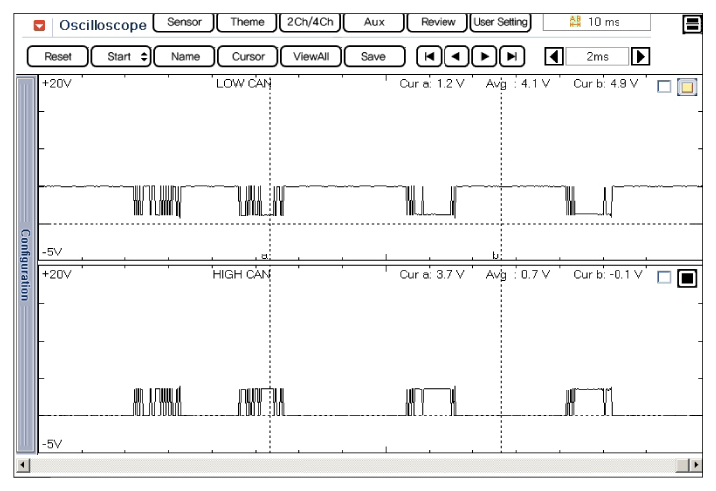

Fig 1: Signal Waveform Of Low & High CAN
G06365620Courtesy of KIA MOTORS AMERICA, INC.

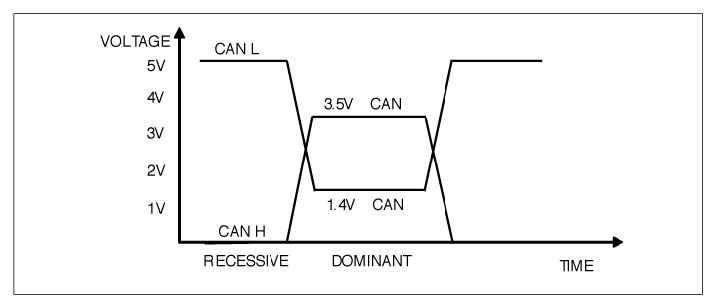

Fig 2: Low & High CAN Voltage Level
G06365621Courtesy of KIA MOTORS AMERICA, INC.
