Kia
›
2009
›
Borrego Limited, 4WD
›
Repair and Diagnosis
›
Restraints
›
Restraints Control Systems
›
SRS Control Module (SRSCM)
›
Schematic Diagrams
›
Circuit Diagram (3)
Circuit Diagram (3)

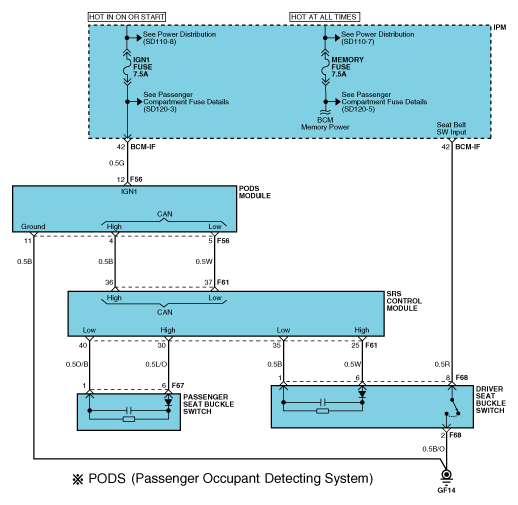

Fig 1: SRS Control Module Circuit Diagram (3)
