B1602 CAN Error
›
Diagnostic Circuit Diagram
Diagnostic Circuit Diagram

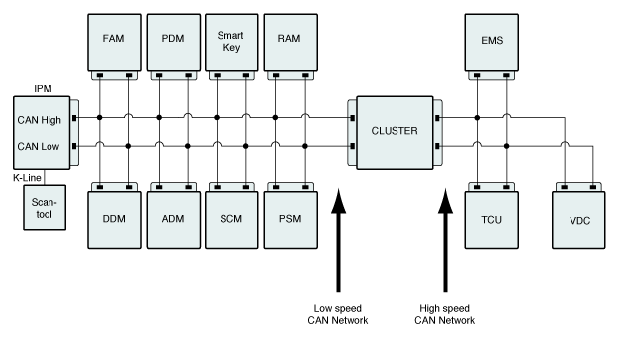

Fig 1: Cluster Diagnostic Circuit Diagram
Courtesy of KIA MOTORS AMERICA, INC.

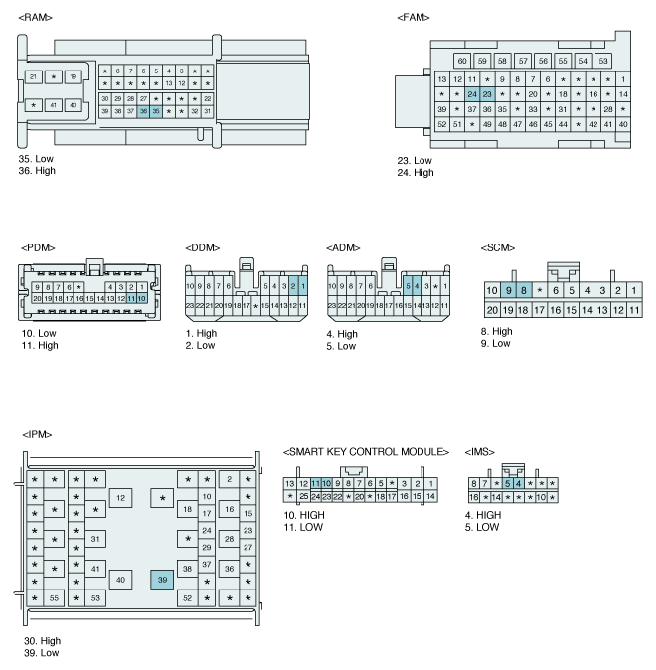

Fig 2: Identifying Control Module Connectors & Terminals (1 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.

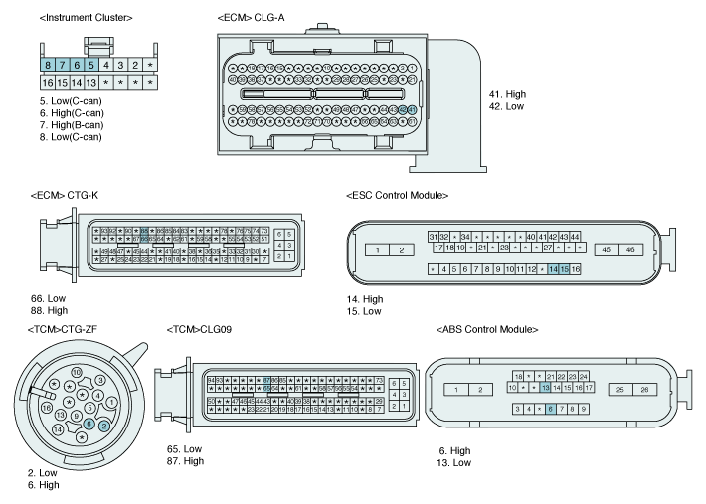

Fig 3: Identifying Control Module Connectors & Terminals (2 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
