Home › Kia › 2009 › Borrego Limited, RWD › Repair and Diagnosis › Transmission › Transfer Case Assembly › Transfer Assembly › Components and Component Locations › Components

Components and Component Locations: Components

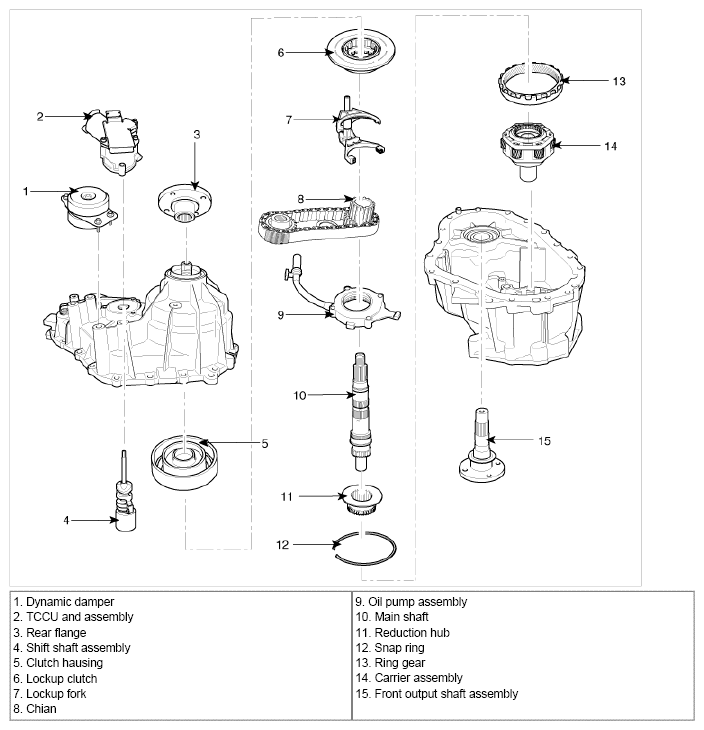

Fig 1: Identifying Transfer Assembly Components
G06363949Courtesy of KIA MOTORS AMERICA, INC.
