Immobilizer Control Module Connector End View
Immobilizer Control Module Connector End View

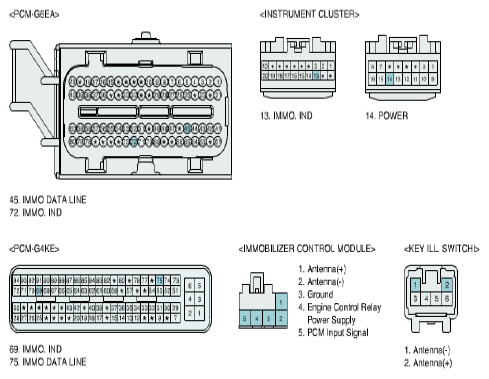

Fig 1: Immobilizer Control Module Connector End View
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
