Roof Trim Replacement
NOTE:
- Put on gloves to protect your hands.
- When prying with a flat-tipped screwdriver, wrap it with protective tape to prevent damaged.
- Take care not to bend or scratch the trim and panels.
- Remove the following items.
- Front seat, rear seat assembly.
- Front, rear door scuff trim.
- Front pillar trim.
- Center lower, upper pillar trim.
- Rear pillar trim.
- Overhead console.
- Room lamp.
- Sunvisor, assist handle.
- Vanity lamp and hands free mic.

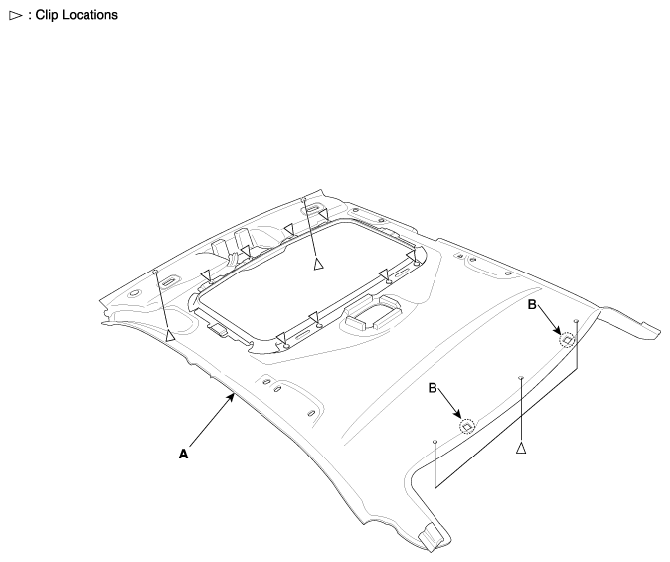

- Remove the connector (B).
- Remove the roof trim (A).
- Installation is the reverse of removal.
NOTE:
- Replace any damaged clips.
