Automatic Transaxle
›
Components And Components Location
›
Components (1)
Components (1)

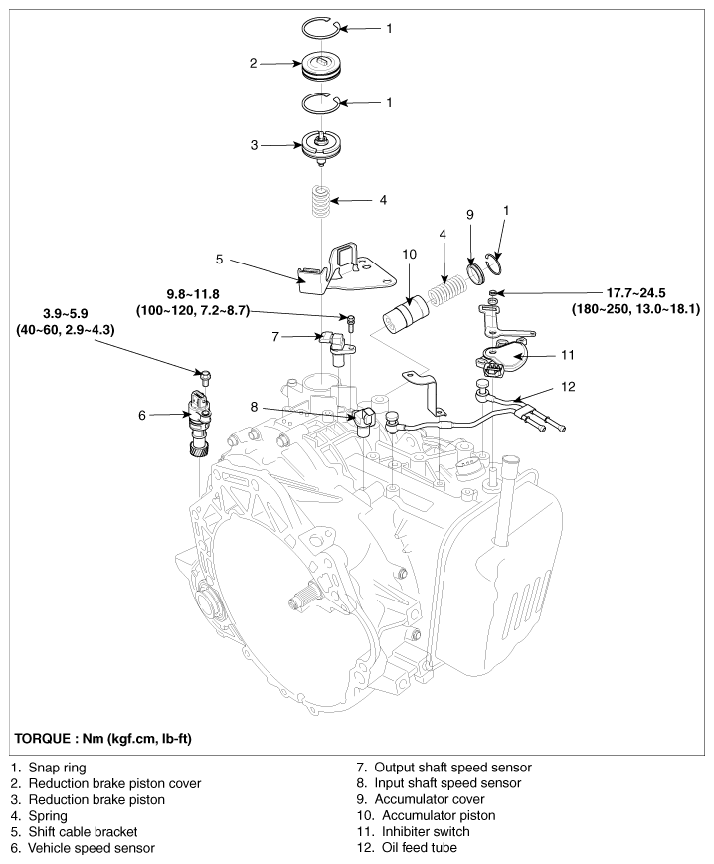

Fig 1: Automatic Transaxle Replacement Components With Torque Specifications
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
