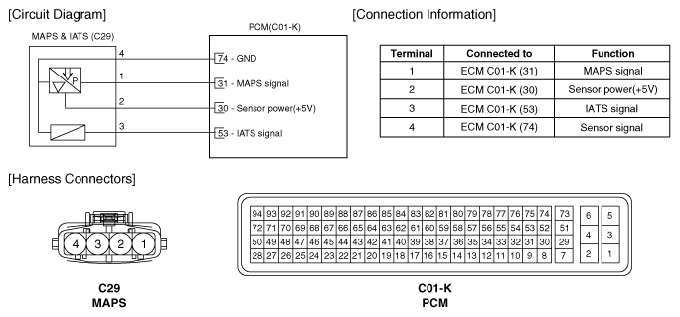

Home › Kia › 2009 › Optima EX, 2.4 8 › Repair and Diagnosis › Engine Performance › Engine Control Systems › Engine Control System - 2.4L › Intake Air Temperature Sensor (IATS) › Schematic Diagrams › Circuit Diagram
