Optima EX, 2.4 8
›
Repair and Diagnosis
›
Engine Performance
›
Engine Control Systems
›
Engine Control System - 2.4L
›
Powertrain Control Module (Pcm)
›
Circuit Diagram
Circuit Diagram

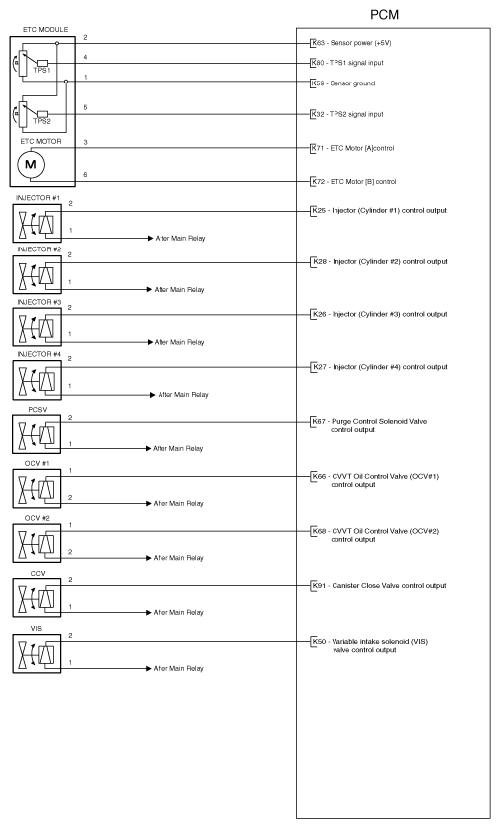

Fig 1: PCM Harness Connector Circuit Diagram (1 Of 5)
Courtesy of KIA MOTORS AMERICA, INC.

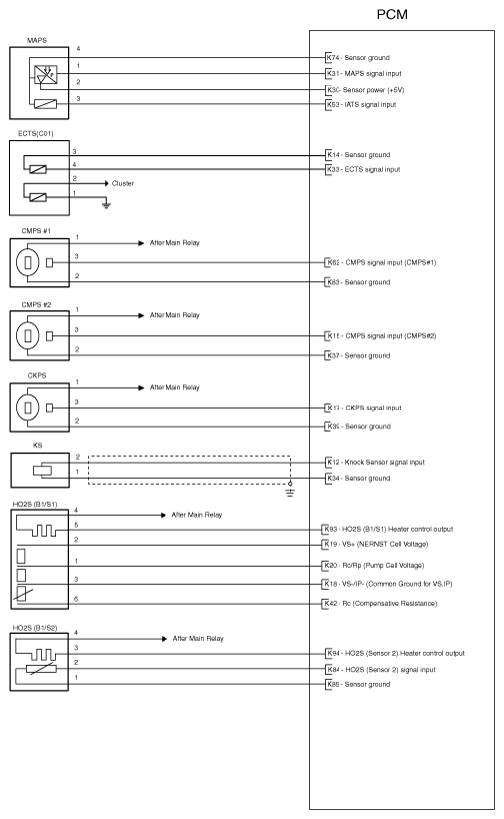

Fig 2: PCM Harness Connector Circuit Diagram (2 Of 5)
Courtesy of KIA MOTORS AMERICA, INC.

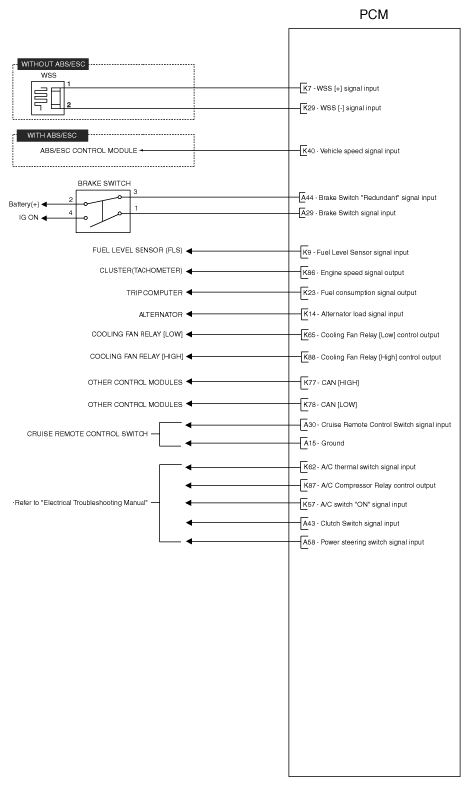

Fig 3: PCM Harness Connector Circuit Diagram (3 Of 5)
Courtesy of KIA MOTORS AMERICA, INC.

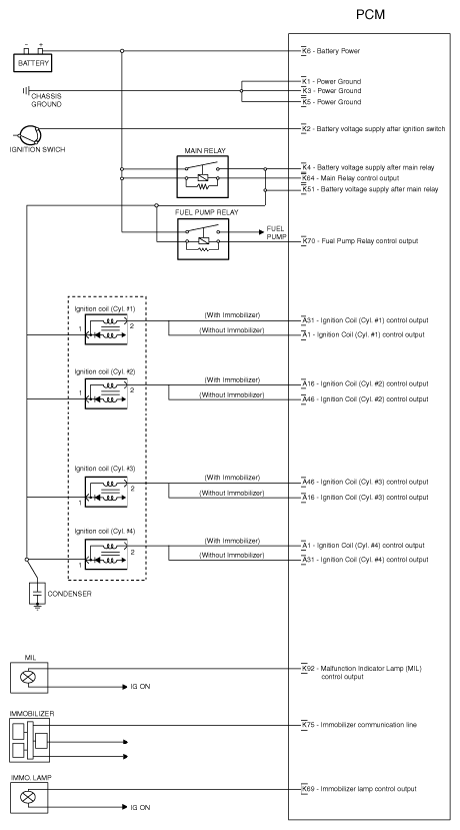

Fig 4: PCM Harness Connector Circuit Diagram (4 Of 5)
Courtesy of KIA MOTORS AMERICA, INC.
Fig 5: PCM Harness Connector Circuit Diagram (5 Of 5)
Courtesy of KIA MOTORS AMERICA, INC.
