Components And Components Location: Components

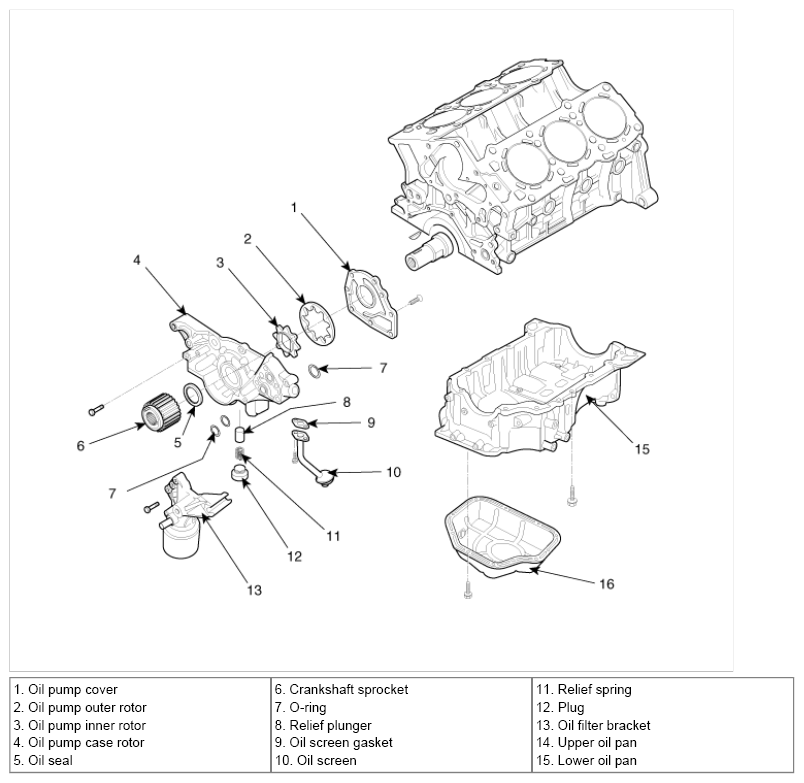

Fig 1: Identifying Oil Pump Components
G06415674Courtesy of KIA MOTORS AMERICA, INC.
