Optima EX, 2.7 4
›
Repair and Diagnosis
›
Engine Performance
›
Engine Control Systems
›
Engine Control System - 2.7L
›
Camshaft Position Sensor (CMPS)
›
Troubleshooting
›
Wave Form
Wave Form

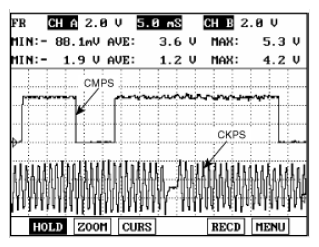

Fig 1: CMPS And CKPS Waveform (1 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.

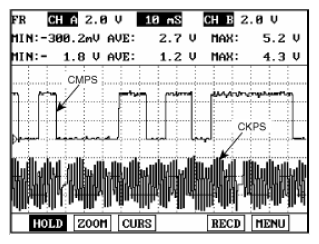

Fig 2: CMPS And CKPS Waveform (2 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
