Optima EX, 2.7 4
›
Repair and Diagnosis
›
Engine Performance
›
Engine Control Systems
›
Engine Control System - 2.7L
›
Injector
›
Schematic Diagrams
›
Circuit Diagram
Circuit Diagram

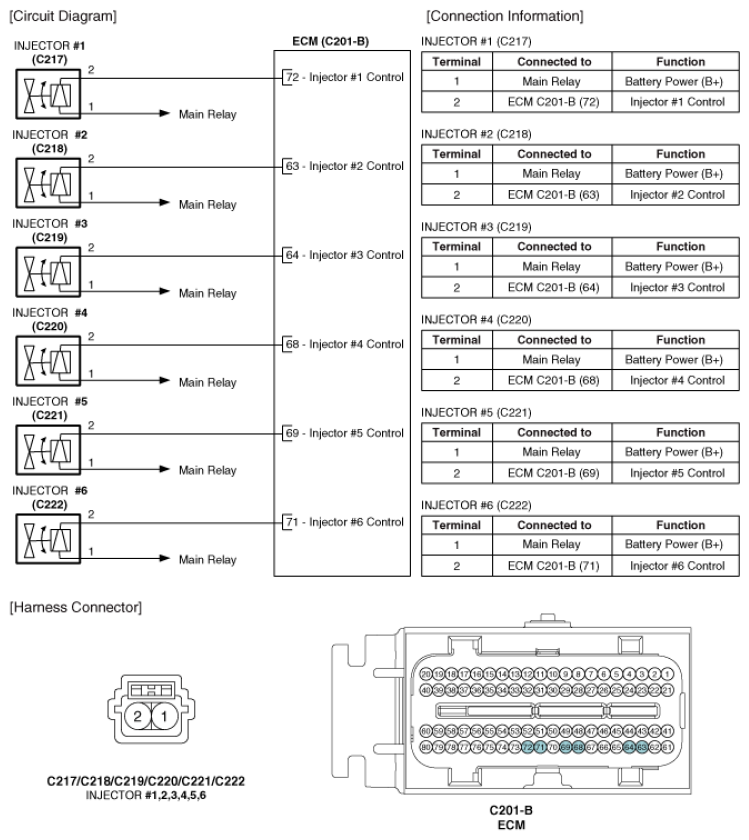

Fig 1: Injector Circuit Diagram
Courtesy of KIA MOTORS AMERICA, INC.
