Components and Components Location: Components

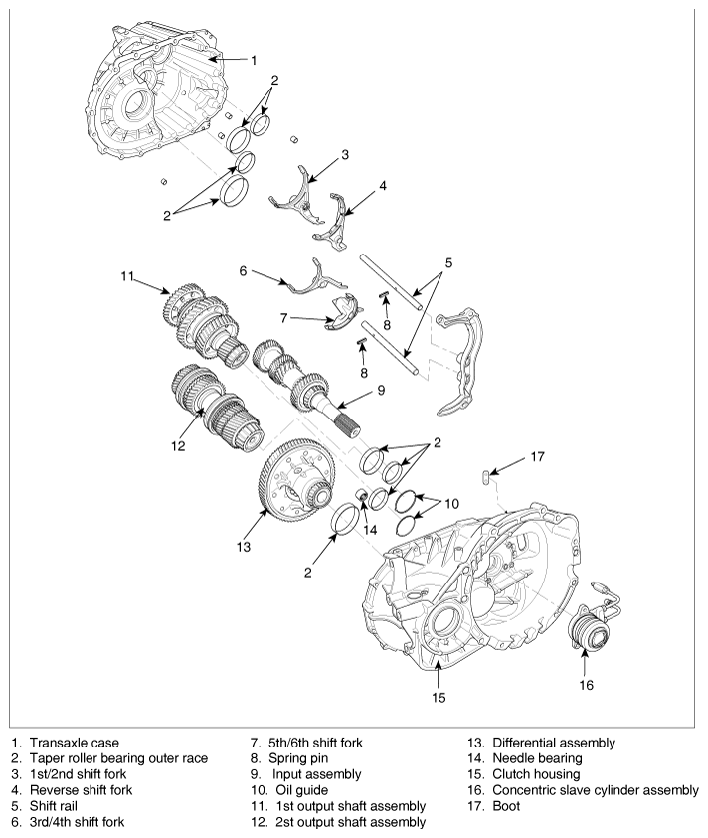

Fig 1: Identifying Manual Transaxle Components
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
