OEM Connector End Views
›
Connector End Views
›
Multi-Function Switch Connector End Views
Multi-Function Switch Connector End Views

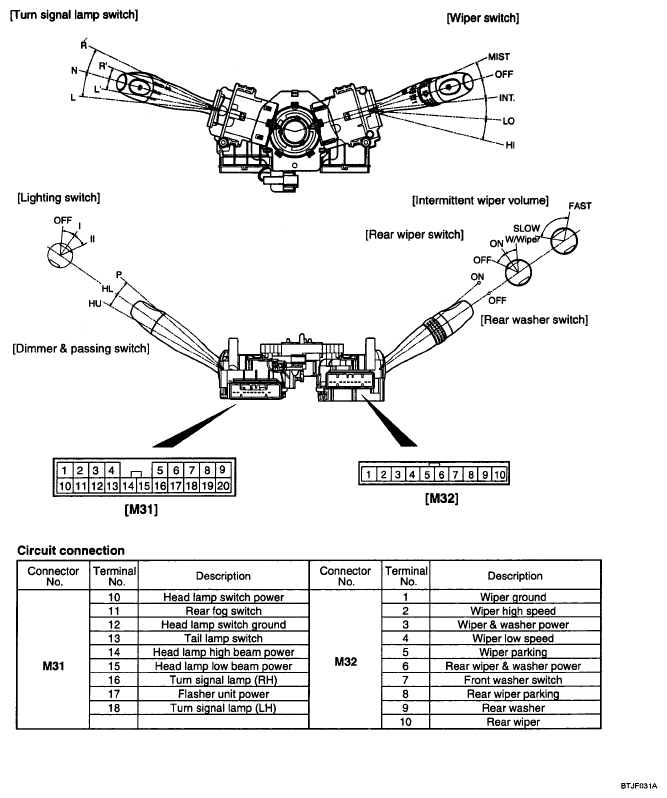

Fig 1: Multi-Function Switch Connector End Views
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
