Mechanical System: Components

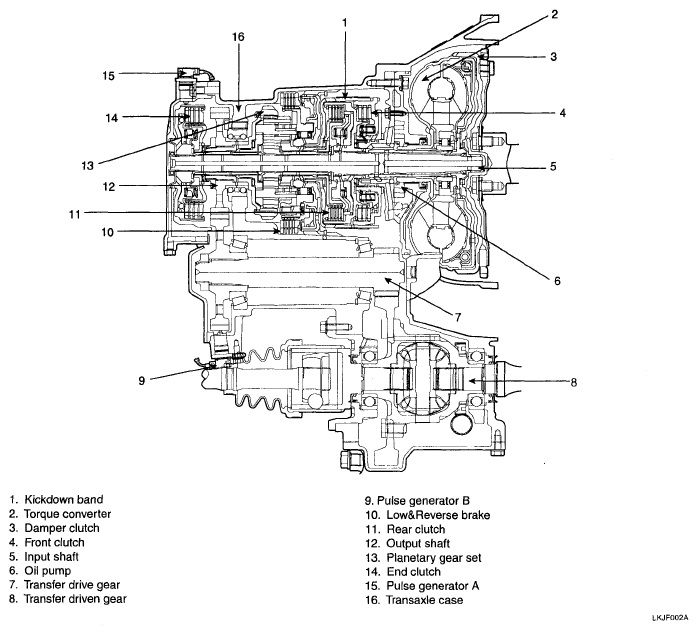

Fig 1: Cutaway View Of Transaxle
G04862487Courtesy of KIA MOTORS AMERICA, INC.
