DTC P0707 Transaxle Range Switch-No Input
›
Schematic Diagram
Schematic Diagram

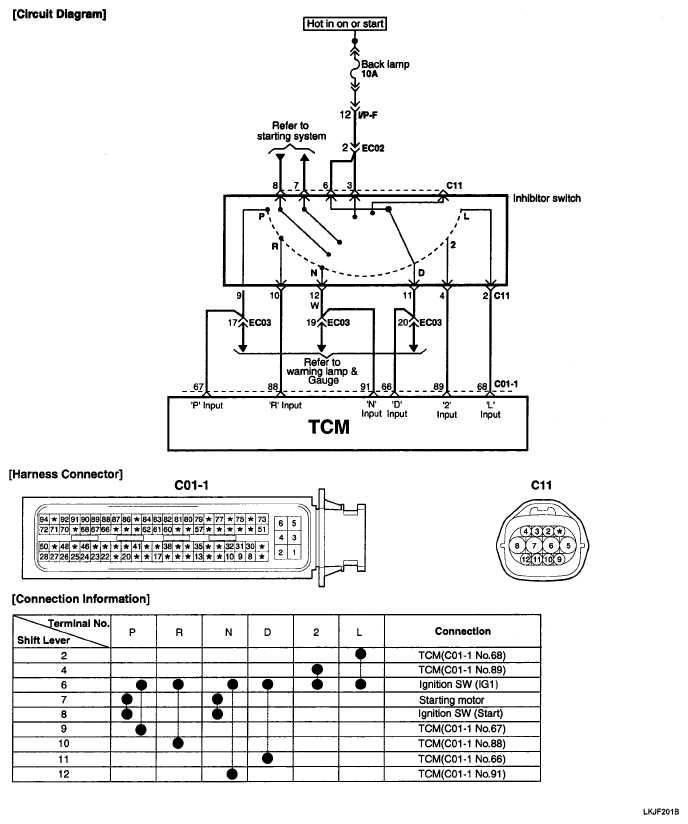

Fig 1: Schematic Diagram
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
