Drive Shaft Oil Seals Replacement

Disconnect the drive shaft from the transaxle.
Using a flat-tip (-) screwdriver, remove the oil seal (A).

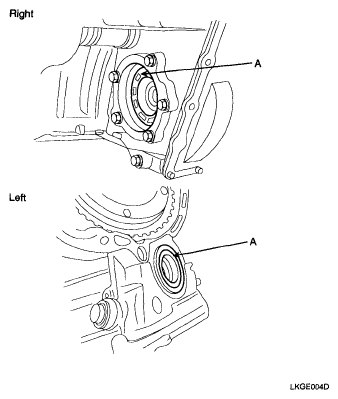

Fig 1: Identifying Drive Shaft Oil Seals (Right And Left)
Courtesy of KIA MOTORS AMERICA, INC.
Apply a coating of the transaxle fluid to the lip of the oil seal.
Using the special tool (09431-21200), tap the drive shaft oil seal into the transaxle.

Fig 2: Identifying Special Tool (09431-21200)
Courtesy of KIA MOTORS AMERICA, INC.
