Automatic Transaxle System: Troubleshooting: Notes

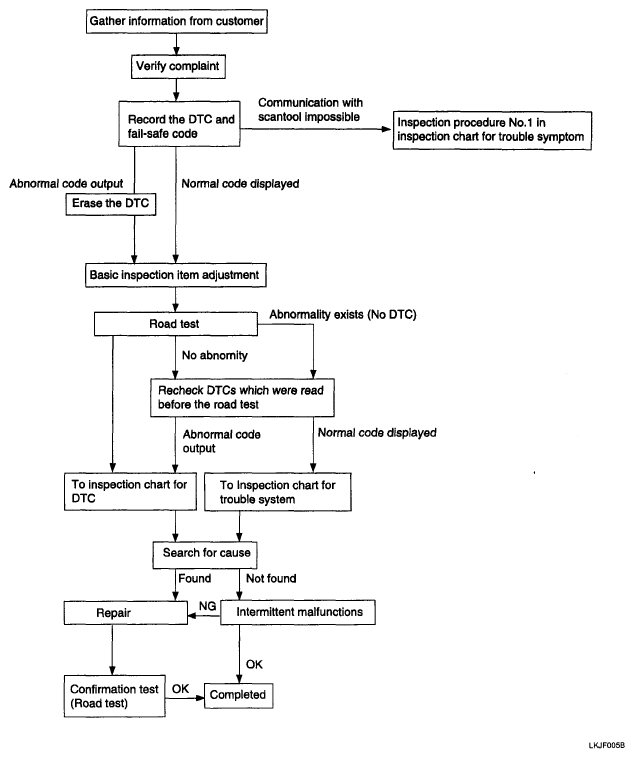

Fig 1: Troubleshooting Flow Chart
G04862528Courtesy of KIA MOTORS AMERICA, INC.
