Chart 1

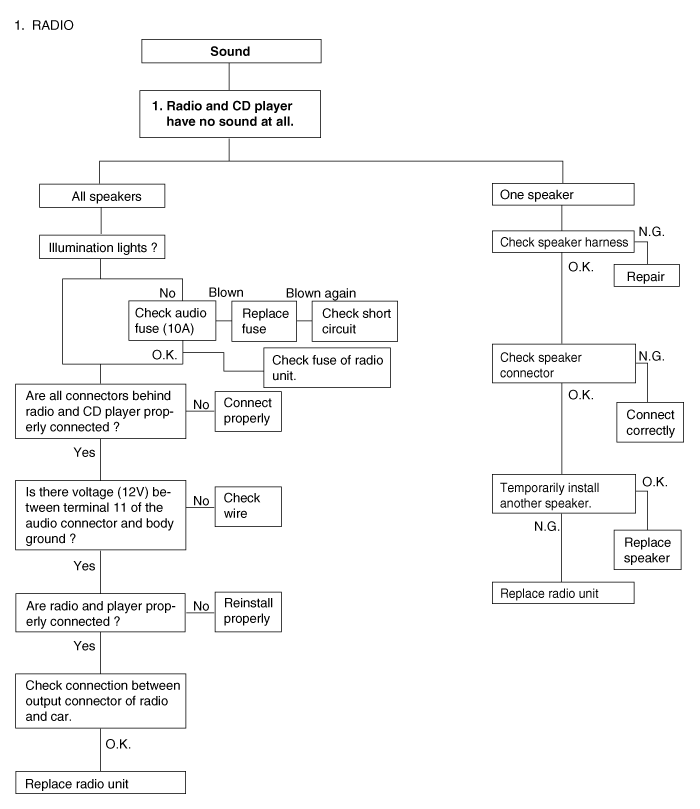

Fig 1: Troubleshooting Flow Chart - Sound

Courtesy of KIA MOTORS AMERICA, INC.

Fig 2: Troubleshooting Flow Chart - CD Player OK But No Sound From Radio

Courtesy of KIA MOTORS AMERICA, INC.

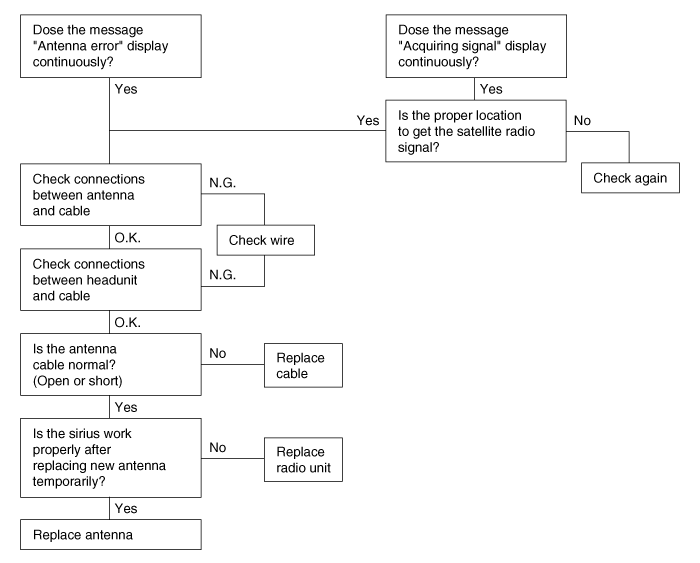

Fig 3: Troubleshooting Flow Chart - Sirius (1 Of 2)

Courtesy of KIA MOTORS AMERICA, INC.

Fig 4: Troubleshooting Flow Chart - Sirius (2 Of 2)

Courtesy of KIA MOTORS AMERICA, INC.
