Monitor Scan Tool Data

Check status
1. IGN "ON" & Engine "OFF"
2. Monitor the "ECM, Key and SMARTRA Status" Parameter on the Scan Tool.
  Specification: 'LEARNT'

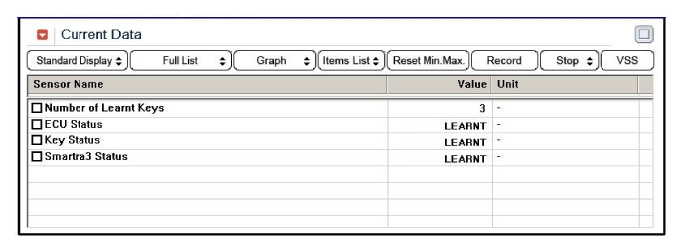

  Fig 1: Data Keys Have Been Taught, ECU Has Been Learnt, Key In Key Cylinder Has Been Learnt And Smartra3 Has Been Learnt
  Courtesy of KIA MOTORS AMERICA, INC.
3. Is the "ECU STATUS" Parameter "Locked"?
  YES
  - Keep "KEY ON" status for 1 hours to withdraw "Locked by Timer" status. Then register transponder and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
  NO
  - Check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, damage on the ECM or SMARTRA.
    And this DTC has not erased in previous repair. Repair or replace as necessary and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
