Front Seat: Components

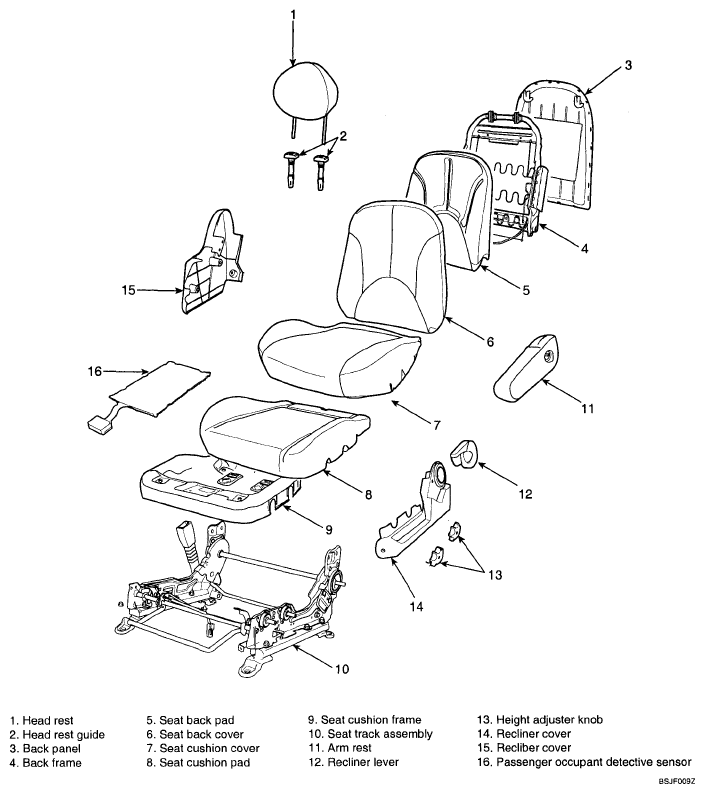

Fig 1: Identifying Front Seat Components
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
