Seat Back Frame Replacement

  1. Remove the recliner cover, knob and height knob. See RECLINER COVER, KNOB AND HEIGHT KNOB REPLACEMENT .
  2. Disconnect the airbag connect (A), heater connect (B).

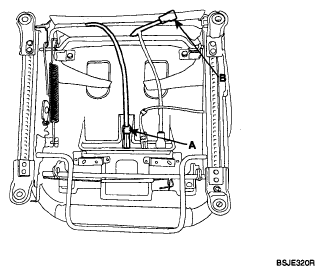

    Fig 1: Identifying Airbag Connect And Heater Connect
    G04863445Courtesy of KIA MOTORS AMERICA, INC.
  3. Disconnect the seat back frame (B) from seat track assembly (A).

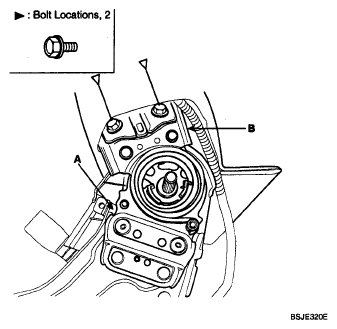

    Fig 2: Identifying Seat Back Frame And Seat Track Assembly
    G04863434Courtesy of KIA MOTORS AMERICA, INC.
  4. Remove the seat back cover. See RECLINER COVER, KNOB AND HEIGHT KNOB REPLACEMENT .
  5. Remove the head rest and head rest guide. See SEAT CUSHION COVER REPLACEMENT .
  6. Remove the seat back cover and sponge, from frame. See RECLINER COVER, KNOB AND HEIGHT KNOB REPLACEMENT .
  7. After loosening seat back frame mounting bolts, remove the seat back frame (A).
    NOTE:
    • Remove the side air bag for replacing side air bag installation seat.
    • Before service, be fully aware of precaution and service procedure relevant to air bag.
    Fig 3: Identifying Seat Back Frame And Mounting Bolts
    G04863447Courtesy of KIA MOTORS AMERICA, INC.
  8. Installation is the reverse of removal.
