Parking Brake: Components

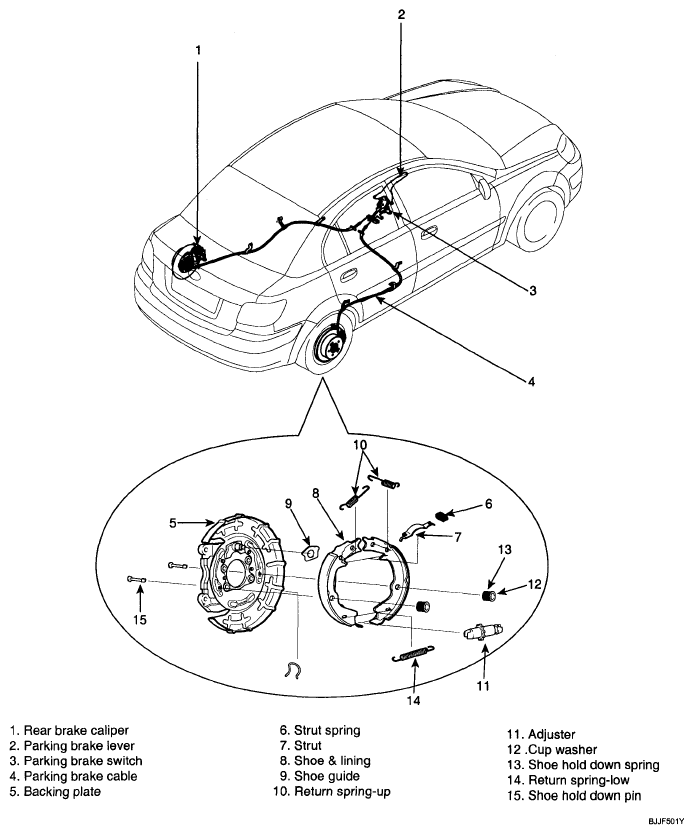

Fig 1: Identifying Parking Brake Components
G04863225Courtesy of KIA MOTORS AMERICA, INC.
