Power Circuit Inspection

Check voltage of power circuit
1. Key "OFF".
2. Disconnect FTPS connector.
3. Key "ON".
4. Measure the voltage between terminal 1 of FTPS harness connector and chassis ground.
  Specification: Approx. 5V

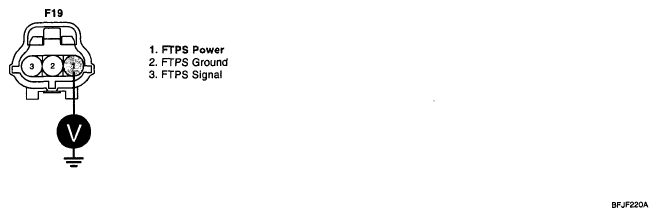

  Fig 1: Measuring Voltage Between Terminal 1 Of FTPS Harness Connector And Chassis Ground
  Courtesy of KIA MOTORS AMERICA, INC.
5. Is the measured voltage within specification?
  YES
  - Go to "SIGNAL CIRCUIT INSPECTION " procedure.
  NO
  - Go to GROUND CIRCUIT INSPECTION procedure.
