Power Circuit Inspection

Check Voltage of power circuit from battery
1. IG "OFF".
2. Disconnect A/C Relay.
3. IG "ON".
4. Measure the voltage between terminal 3 of A/C Relay harness connector and ground.
  Specification: B+

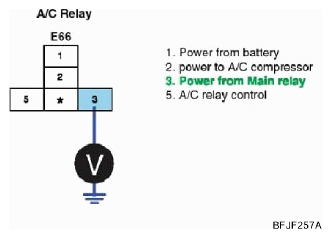

  Fig 1: Measuring Voltage Between Terminal 3 Of A/C Relay Harness Connector And Ground
  Courtesy of KIA MOTORS AMERICA, INC.
5. Is the measured voltage within specification?
  YES
  - Go to "CONTROL CIRCUIT INSPECTION " procedure.
  NO
  - Check "10A SNSR" fuse between a main relay and a A/C relay.
  - Check Open or Short to ground in power circuit of A/C relay and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
