Monitor Scan Tool Data

WARNING: This page is about a different variant/trim than selected.

Connect scan tool to data link connector (DLC).
Engine "ON".
Select "D RANGE" and drive vehicle.
Monitor the "TORQUE CONVERTER (DAMPER) CLUTCH" parameter on the scan tool.
Specification: TCC SLIP < 100 RPM (In condition that TCC SOL. DUTY = 100%)

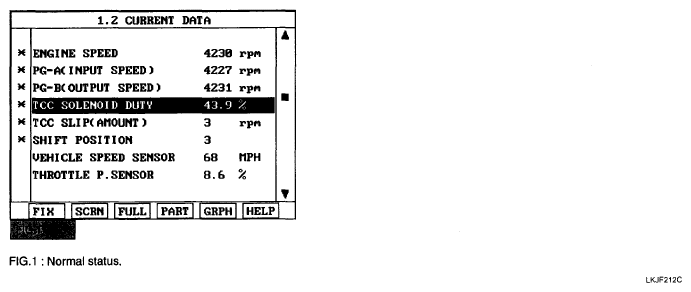

Fig 1: Scan Tool Data - Screen Display
Courtesy of KIA MOTORS AMERICA, INC.
Is "TCC SLIP" within specifications?
YES : --> Fault is intermittent caused by poor contact in the sensor's and/or PCM's connector or was repaired and PCM memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration or damage. Repair or replace as necessary and go to "VERIFICATION OF VEHICLE REPAIR " procedure.

NO : --> Go to "COMPONENT INSPECTION " procedure.
