Home › Kia › 2009 › Rio Base, Standard › Repair and Diagnosis › Suspension › Front Suspension › Front Suspension System › Front Strut Assembly › Components

Front Strut Assembly: Components

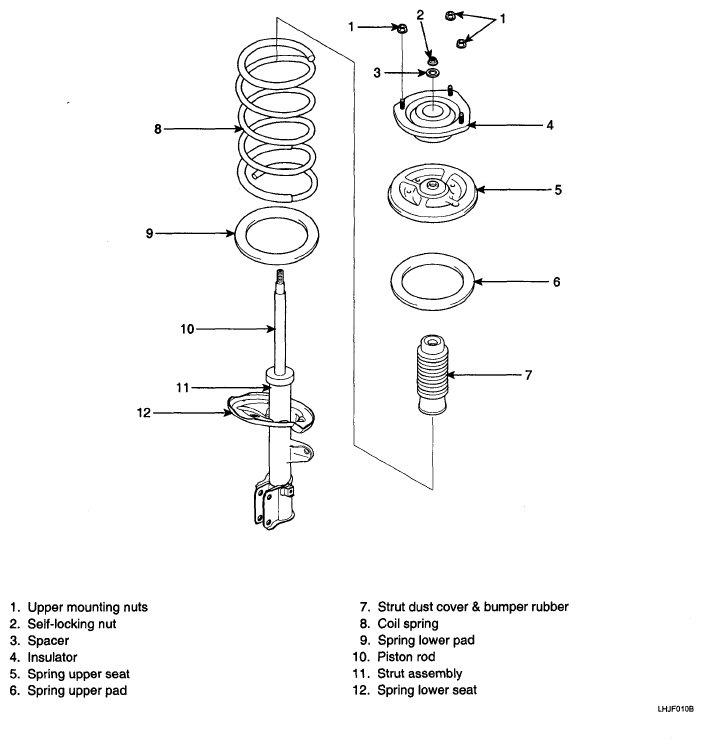

Fig 1: Identifying Front Strut Assembly Components
G04862792Courtesy of KIA MOTORS AMERICA, INC.
