Manual Transaxle System (From 11.19.2008)
›
Manual Transaxle
›
Components And Components Location
›
Components (1)
Components (1)

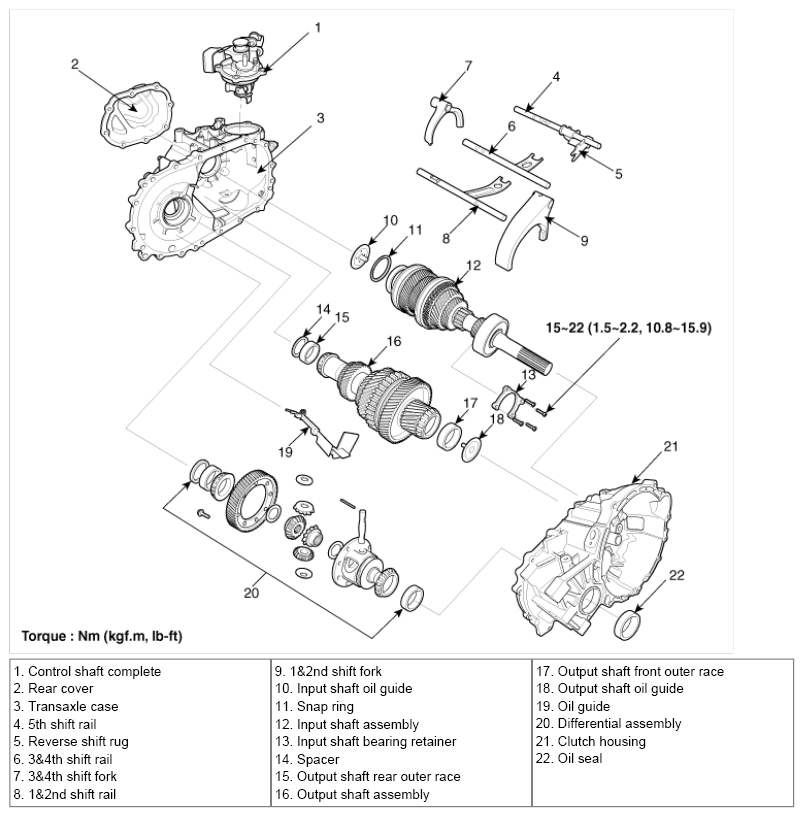

Fig 1: Exploded View Of Manual Transaxle (1 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
