Manual Transaxle Control System (From 11.19.2008)
›
Shift Liver
›
Components And Components Location
›
Components (1)
Components (1)

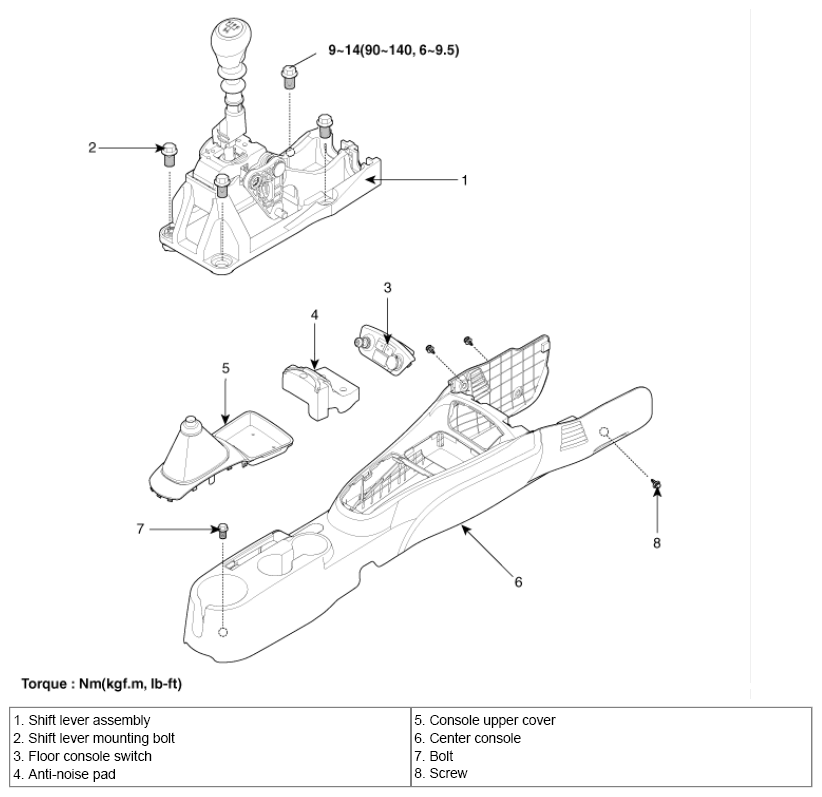

Fig 1: Exploded View Of Shift Liver (1 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
